Locking Mini Circuit Board Support - .125 Board Hole x .100 Chassis Hole
Locking Mini Circuit Board Support - .125 Board Hole x .100 Chassis Hole
SKU:01C-95abc7
Enhance board stability with our Locking Mini Circuit Board Support. Secure fit for .125 board hole x .100 chassis hole, RoHS compliant, and ASTM D4066/PA111 certified.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Locking Mini Circuit Board Support - .125 Board Hole x .100 Chassis Hole
$29.99
Quantity: 1
Claim Your Seller Account
Locking Mini Circuit Board Support - .125 Board Hole x .100 Chassis Hole
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your circuit board assembly with our Locking Mini Circuit Board Support designed for .100 chassis holes. Made of Nylon 66 material, this support offers a secure fit for your board while allowing for easy release. Its teardrop style board end ensures a positive lock in place. This support is RoHS compliant and meets ASTM D4066 and PA111 standards. With a temperature range of -40 to 185F, it's ideal for various applications. Choose UL94V-0 for enhanced flame resistance (add 'X' to the part number).
Ready to Grow Without Cash Flow Constraints?

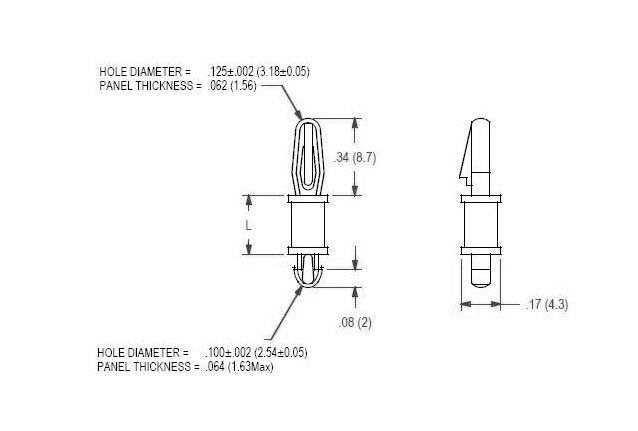

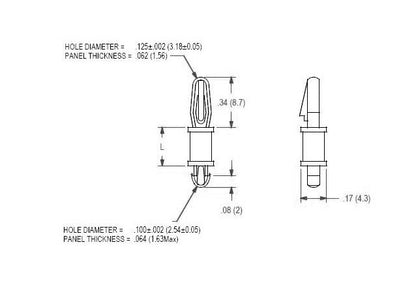

Product Specifications
Specifications Board Hole Diameter
.125 (3.18) inches (mm)
Specifications Chassis Hole Diameter
.100 (2.54) inches (mm)
Specifications Dim L 015
.437 (11.1) inches (mm)
Specifications Panel Thickness
.062 (1.56) Both Ends inches (mm)
Specifications Remarks Panel Thickness
.064 Max Chassis
