Locking Mini Circuit Board Support - .125 Board Hole x .125 Chassis Hole
Locking Mini Circuit Board Support - .125 Board Hole x .125 Chassis Hole
SKU:01C-1272d7
Secure and easily mount circuit boards with the 56 Series Locking Support. Releasable design, durable Nylon 66 UL94V-2 material, ASTM and PA111 compliant.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Locking Mini Circuit Board Support - .125 Board Hole x .125 Chassis Hole
$24.99
Quantity: 1
Claim Your Seller Account
Locking Mini Circuit Board Support - .125 Board Hole x .125 Chassis Hole
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

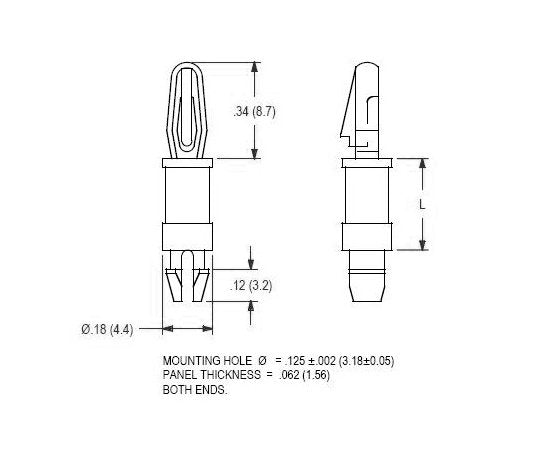

The 56 Series Locking Mini Circuit Board Support is designed for secure board mounting with a .125-inch board hole and chassis hole. Its releasable design ensures easy installations and maintenance. Crafted from Nylon 66 UL94V-2 material, it offers durability and reliability within a temperature range of -40 to 185F. With ASTM D4066 and PA111 compliance, this circuit board support meets the highest industry standards, making it ideal for various applications.
Product Specifications
Specifications Board Hole Diameter
.125 (3.2) inches (mm)
Specifications Chassis Hole Diameter
.125 (3.2) inches (mm)
Specifications Dim L
.437 (11.1) inches (mm)
Specifications Panel Thickness
.062 (1.6) inches (mm)
Specifications Remarks Panel Thickness
Same Both Ends
