Locking Mini Circuit Board Support - .125 Board Hole x .125 Chassis Hole
Locking Mini Circuit Board Support - .125 Board Hole x .125 Chassis Hole
SKU:01C-0011ad
Secure and releasable Locking Mini Circuit Board Support with .125 Board Hole x .125 Chassis Hole. Nylon 66 construction. RoHS compliant.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Locking Mini Circuit Board Support - .125 Board Hole x .125 Chassis Hole
$39.99
Quantity: 1
Claim Your Seller Account
Locking Mini Circuit Board Support - .125 Board Hole x .125 Chassis Hole
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Locking Mini Circuit Board Support from the 56 Series offers secure board support with a releasable feature for easy maintenance. Made of Nylon 66 UL94V-2 material (UL94V-0 available), this support is ASTM D4066 and PA111 compliant and RoHS compliant for environmental responsibility. It can withstand temperatures ranging from -40 to 185F, making it versatile for various operational conditions. The .125-inch board hole diameter and .125-inch chassis hole diameter ensure precise fitting, while the .062-inch panel thickness provides stability. Ideal for circuit board applications, each bag contains 1000 supports in the natural color.
Product Specifications

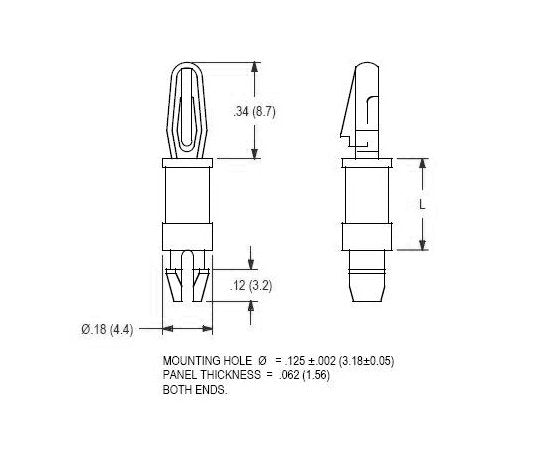

Specifications Board Hole Diameter
.125 (3.2) inches (mm)
Specifications Chassis Hole Diameter
.125 (3.2) inches (mm)
Specifications Dim L
.625 (15.9) inches (mm)
Specifications Panel Thickness
.062 (1.6) inches (mm)
Specifications Remarks Panel Thickness
Same Both Ends
