Locking Mini Circuit Board Support - .125 Board Hole x .125 Chassis Hole
Locking Mini Circuit Board Support - .125 Board Hole x .125 Chassis Hole
SKU:01C-4c925c
Securely mount circuit boards with the 56 Series Locking Mini Support. Made from Nylon 66 material, RoHS compliant.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Locking Mini Circuit Board Support - .125 Board Hole x .125 Chassis Hole
$24.99
Quantity: 1
Claim Your Seller Account
Locking Mini Circuit Board Support - .125 Board Hole x .125 Chassis Hole
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

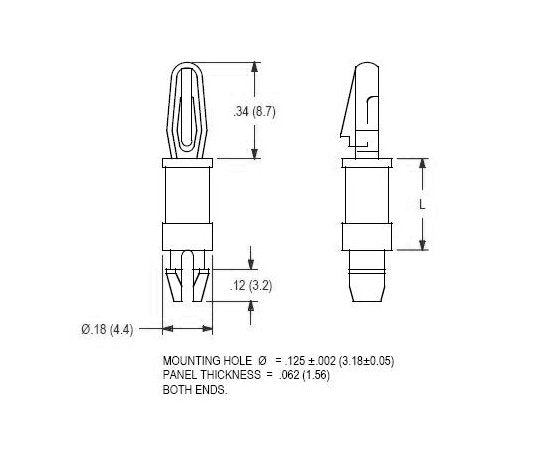

The 56 Series Locking Mini Circuit Board Support is designed with a .125-inch Board Hole x .125-inch Chassis Hole for secure yet releasable board mounting. Made from Nylon 66 UL94V-2 material (UL94V-0 available), this support is RoHS compliant and can withstand temperatures from -40 to 185F. With a panel thickness of .062 inches, this support ensures stability and reliability in circuit board applications. The support is ASTM D 4066 and PA111 compliant, meeting industry standards for quality and performance.
Product Specifications
Specifications Board Hole Diameter
.125 (3.2) inches (mm)
Specifications Chassis Hole Diameter
.125 (3.2) inches (mm)
Specifications Dim L
.312 (7.9) inches (mm)
Specifications Panel Thickness
.062 (1.6) inches (mm)
Specifications Remarks Panel Thickness
Same Both Ends
