Locking Mini Circuit Board Support - .125 Board Hole x .125 Chassis Hole
Locking Mini Circuit Board Support - .125 Board Hole x .125 Chassis Hole
SKU:01C-470c46
Secure and reversible Locking Mini Circuit Board Support for precise board installations. Nylon 66 UL94V-2 material, .125 Board Hole x .125 Chassis Hole, RoHS compliant, ASTM D 4066 & PA111 standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Locking Mini Circuit Board Support - .125 Board Hole x .125 Chassis Hole
$24.99
Quantity: 1
Claim Your Seller Account
Locking Mini Circuit Board Support - .125 Board Hole x .125 Chassis Hole
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 56 Series Locking Mini Circuit Board Support is designed for secure yet reversible installation in circuit boards. Made from Nylon 66 UL94V-2 material (UL94V-0 available), this support ensures a reliable hold with a release option, enhancing maintenance efficiency. It features a .125 inch Board Hole Diameter and .125 inch Chassis Hole Diameter, suitable for panels with a thickness of .062 inches. Meeting ASTM D 4066 and PA111 standards, this support is RoHS compliant and operates in a temperature range from -40 to 185F (-40 to 85C). Ideal for various applications requiring durable and compliant circuit board support.

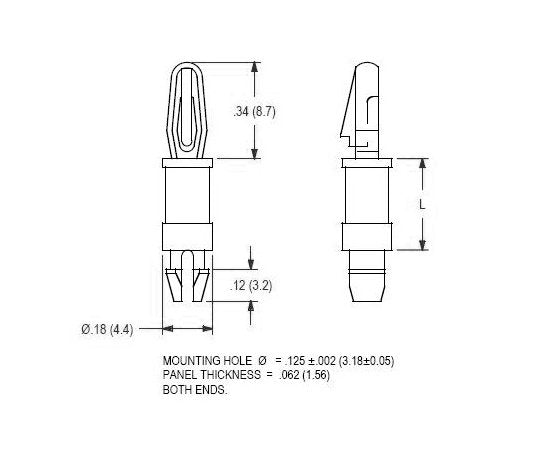

Product Specifications
Specifications Board Hole Diameter
.125 (3.2) inches (mm)
Specifications Chassis Hole Diameter
.125 (3.2) inches (mm)
Specifications Dim L
.250 (6.4) inches (mm)
Specifications Panel Thickness
.062 (1.6) inches (mm)
Specifications Remarks Panel Thickness
Same Both Ends
