Locking Mini Circuit Board Support - .125 Board Hole x .125 Chassis Hole, Nylon 66 UL94V-2
Locking Mini Circuit Board Support - .125 Board Hole x .125 Chassis Hole, Nylon 66 UL94V-2
SKU:01C-3411b1
Securely hold circuit boards in place with the 56 Series Locking Mini Circuit Board Support featuring .125 board hole x .125 chassis hole dimensions. Crafted from Nylon 66 UL94V-2 material with RoHS compliance and ASTM D 4066, PA111 standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Locking Mini Circuit Board Support - .125 Board Hole x .125 Chassis Hole, Nylon 66 UL94V-2
$29.99
Quantity: 1
Claim Your Seller Account
Locking Mini Circuit Board Support - .125 Board Hole x .125 Chassis Hole, Nylon 66 UL94V-2
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 56 Series Locking Mini Circuit Board Support is designed to securely hold circuit boards in place with its .125 board hole x .125 chassis hole dimensions. Crafted from Nylon 66 UL94V-2 material, this support ensures a reliable and releasable fit. It is RoHS compliant and meets ASTM D 4066, PA111 standards, offering a temperature range of -40 to 185F (-40 to 85C). Ideal for circuit board mounting applications, this support provides stability and durability for electronic assemblies.

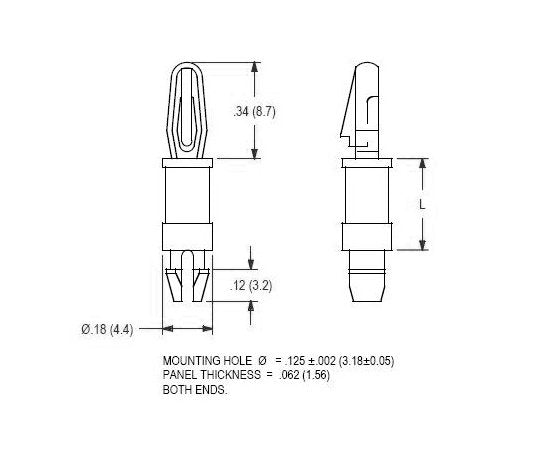

Product Specifications
Specifications Board Hole Diameter
.125 (3.2) inches (mm)
Specifications Chassis Hole Diameter
.125 (3.2) inches (mm)
Specifications Dim L
.187 (4.8) inches (mm)
Specifications Panel Thickness
.062 (1.6) inches (mm)
Specifications Remarks Panel Thickness
Same Both Ends
