Locking Mini Circuit Board Support: 60 Series
Locking Mini Circuit Board Support: 60 Series
SKU:01C-305d2d
Secure and reliable Locking Mini Circuit Board Support for .100 chassis holes. Nylon 66 material, 1000/bag pack.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Locking Mini Circuit Board Support: 60 Series
$39.99
Quantity: 1
Claim Your Seller Account
Locking Mini Circuit Board Support: 60 Series
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

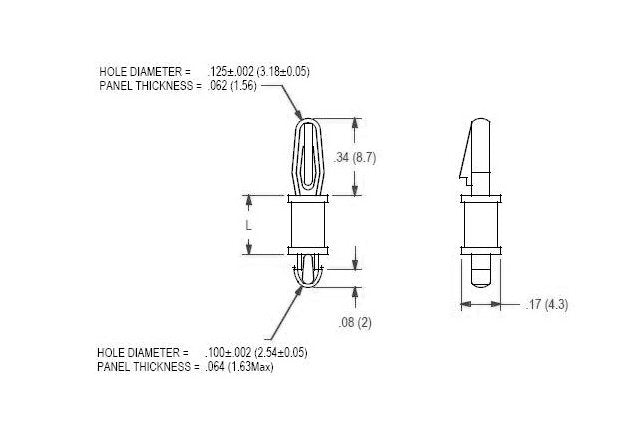

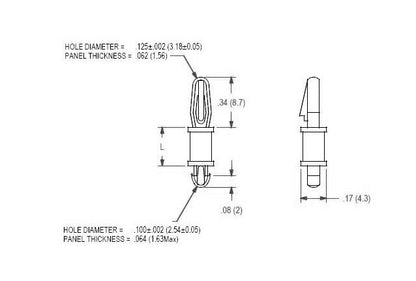

The Locking Mini Circuit Board Support from the 60 Series is designed for secure and reliable PCB support in .100 chassis holes. Featuring a teardrop style board end that ensures a positive lock while remaining releasable, this support is crafted from Nylon 66 UL94V-2 material (UL94V-0 available). It accommodates panel thickness of .062 inches and has a temperature range of -40 to 185F (-40 to 85C), making it suitable for various environments. Each pack contains 1000 supports, offering a dependable solution for circuit board mounting.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Board Hole Diameter
.125 (3.18) inches (mm)
Specifications Chassis Hole Diameter
.100 (2.54) inches (mm)
Specifications Dim L 015
.500 (12.7) inches (mm)
Specifications Panel Thickness
.062 (1.56) Both Ends inches (mm)
Specifications Remarks Panel Thickness
.064 Max Chassis
