Locking Mini Circuit Board Support - Nylon 66 .125 Board Hole x .125 Chassis Hole

Name: Locking Mini Circuit Board Support - Nylon 66 .125 Board Hole x .125 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-fee8aa
Price: 49.99 USD
Availability: OutOfStock

SKU:01C-fee8aa

Securely support circuit boards with our Nylon 66 .125 Board Hole x .125 Chassis Hole mini support - Pack of 1000.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your circuit board assembly with the 56 Series Locking Mini Circuit Board Support. Designed to securely lock into a .125-inch board hole, this support offers reliable stability for your electronics. Made from Nylon 66 UL94V-2 material, it ensures durability and safety. With a temperature range of -40 to 185F, this support is suitable for various environmental conditions. Each pack contains 1000 supports for your convenience. Optional UL94V-0 variant available upon request for enhanced fire safety.

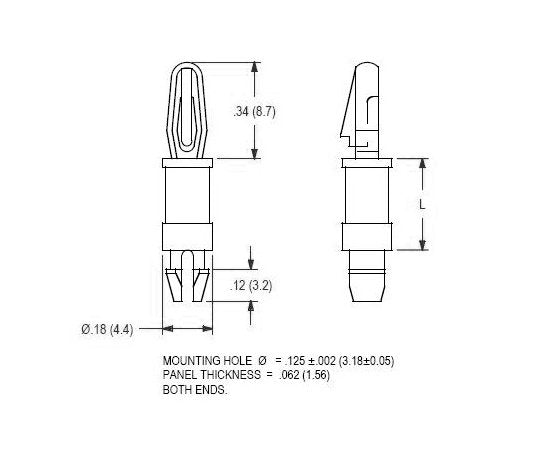

Product Specifications

Specifications Board Hole Diameter

.125 (3.2) inches (mm)

Specifications Chassis Hole Diameter

.125 (3.2) inches (mm)

Specifications Dim L

.875 (22.2) inches (mm)

Specifications Panel Thickness

.062 (1.6) inches (mm)

Specifications Remarks Panel Thickness

Same Both Ends
