Locking Mini Circuit Board Support - Teardrop Style (.125 Board Hole x .100 Chassis Hole)
Locking Mini Circuit Board Support - Teardrop Style (.125 Board Hole x .100 Chassis Hole)
SKU:01C-facd6b
Secure circuit boards reliably with the 60 Series Locking Mini Circuit Board Support, ideal for .100 Chassis Holes. Teardrop Style design ensures a secure fit and easy release. Durable Nylon 66 UL94V-2 material. RoHS compliant.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Locking Mini Circuit Board Support - Teardrop Style (.125 Board Hole x .100 Chassis Hole)
$24.99
Quantity: 1
Claim Your Seller Account
Locking Mini Circuit Board Support - Teardrop Style (.125 Board Hole x .100 Chassis Hole)
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 60 Series Locking Mini Circuit Board Support is a reliable solution for securing circuit boards in place. Designed for .100 Chassis Holes with a .062 thickness, this support offers a teardrop style that ensures a positive and secure fit while remaining easily releasable. Made of Nylon 66 UL94V-2 material (UL94V-0 available), this support is durable and compliant with stringent standards like UL File No: E41938, ASTM D 4066, and PA111. It is RoHS compliant and operates within a temperature range of -40 to 185F (-40 to 85C), making it suitable for various environments.
Ready to Grow Without Cash Flow Constraints?

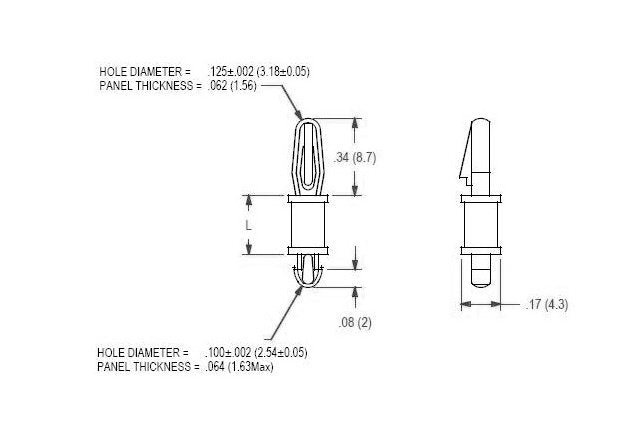

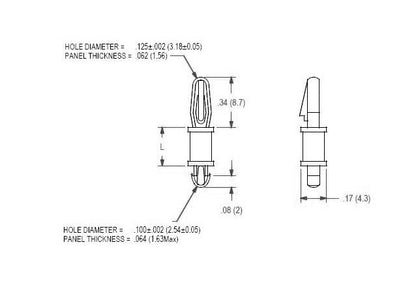

Product Specifications
Specifications Board Hole Diameter
.125 (3.18) inches (mm)
Specifications Chassis Hole Diameter
.100 (2.54) inches (mm)
Specifications Dim L 015
.625 (15.9) inches (mm)
Specifications Panel Thickness
.062 (1.56) Both Ends inches (mm)
Specifications Remarks Panel Thickness
.064 Max Chassis
