Locking Studs MS21260 - Military Specification, Thread Size 1/2-20

Locking Studs MS21260 - Military Specification, Thread Size 1/2-20

SKU:MIL-1941b0

Precision Locking Studs for Military Applications, Meets NSN 4030-00-580-6773

Regular price $35.99
Regular price Sale price $35.99
Sale

Initiate Order

Locking Studs MS21260 - Military Specification, Thread Size 1/2-20

Locking Studs MS21260 - Military Specification, Thread Size 1/2-20

$35.99

Quantity: 1

Claim Your Seller Account

Locking Studs MS21260 - Military Specification, Thread Size 1/2-20

Locking Studs MS21260 - Military Specification, Thread Size 1/2-20

$35.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Locking Studs MS21260, also known as AN 669 and NAS 650, are precision-engineered to fit wire rope diameter of 5/16 inches. With dimensions meeting strict military specifications, these locking studs ensure secure fastening in critical applications. Featuring robust construction with a weight of only 0.35 lbs per piece, these studs offer reliability and durability in demanding environments. Their compliance with NSN 4030-00-580-6773 underscores their suitability for military and institutional use.

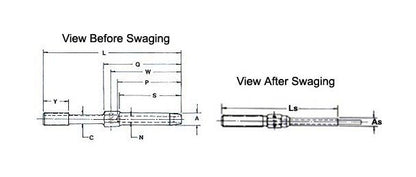

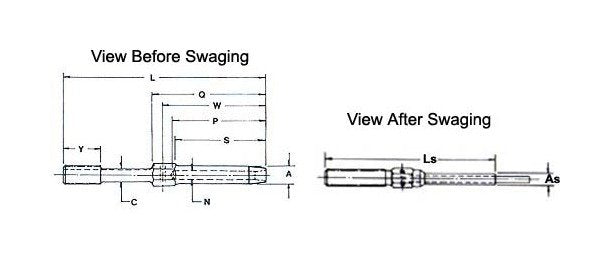

Product Specifications

Specifications As Diam
.563
Specifications A Diam
.635
Specifications C 006 000 Diain
.406
Specifications Lbs Per Piece
.35
Specifications Ls Ref
6.30
Specifications L 063 In
5.875
Specifications Nsn
4030-00-580-6773, 4030005806773
Specifications N Diam
.328
Specifications P In
3.011
Specifications Q 031 016 In
3.718
Specifications R 062 000 Diameter In
.098
Specifications S 062 000 In
2.938
Specifications Thread Size B
1/2-20
Specifications To Fit Wire Rope Dia In
5/16
Specifications W In
3.326
Specifications Y 047 In
1.000
CAGE
0T9L4
NAICS
332510
PSC
4030
