Locking Studs MS21260 Stainless Steel RH/LH Thread

Locking Studs MS21260 Stainless Steel RH/LH Thread

SKU:MIL-538fc1

Precision-engineered stainless steel locking studs for secure fastening. RH/LH thread options. Compliant with military standards.

Regular price $8.99
Regular price Sale price $8.99
Sale

Initiate Order

Locking Studs MS21260 Stainless Steel RH/LH Thread

Locking Studs MS21260 Stainless Steel RH/LH Thread

$8.99

Quantity: 1

Claim Your Seller Account

Locking Studs MS21260 Stainless Steel RH/LH Thread

Locking Studs MS21260 Stainless Steel RH/LH Thread

$8.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Locking Studs MS21260, also known as AN 666 and NAS 650, are precision-engineered from stainless steel to ensure durability and reliability. These studs are designed to fit wire rope diameter of 1/16 inches and feature specifications compliant with military standards. With options for both right-hand (RH) and left-hand (LH) threads, these studs offer versatility and secure fastening for various applications. Each piece is lightweight yet robust, meeting the stringent demands of institutional and government procurement requirements.

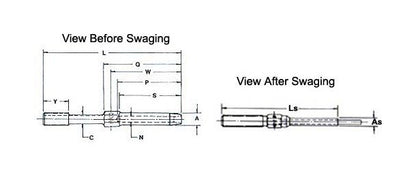

Product Specifications

Specifications As Diam
.138
Specifications A Diam
.160
Specifications C 006 000 Diain
.092
Specifications Lbs Per Piece
.01
Specifications Ls Ref
2.79
Specifications L 063 In
2.616
Specifications Nsn
4030-00-580-6797, 4030005806797
Specifications N Diam
.078
Specifications P In
1.042
Specifications Q 031 016 In
1.319
Specifications R 062 000 Diameter In
.063
Specifications S 062 000 In
.969
Specifications Thread Size B
# 6-40
Specifications To Fit Wire Rope Dia In
1/16
Specifications W In
1.174
Specifications Y 047 In
.375
CAGE
0T9L4
NAICS
332510
PSC
4030
