Locking Studs MS21260 - Stainless Steel RH/LH Thread

Name: Locking Studs MS21260 - Stainless Steel RH/LH Thread
Brand: Lexco Cable Manufacturing
SKU: MIL-ba7f51
Price: 12.99 USD
Availability: OutOfStock

SKU:MIL-ba7f51

Premium stainless steel Locking Studs to secure wire rope. MIL-SPEC compliant with RH/LH thread options.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

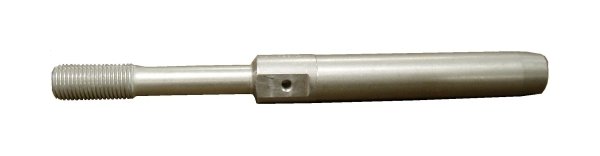

Upgrade your wire rope fittings with our Locking Studs MS21260 (AN 666, NAS 650). Crafted from high-quality stainless steel, these studs ensure secure fastening. Specify RH or LH thread as needed. With precise dimensions to fit 5/32" wire rope dia and meet MIL-SPEC standards, these studs provide reliability and durability in demanding environments.

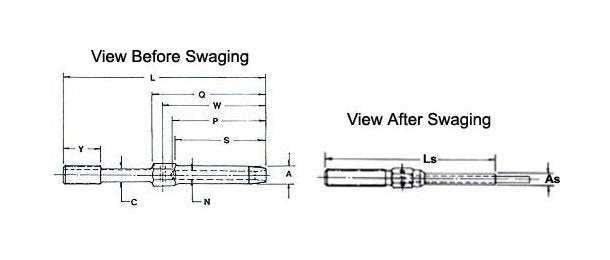

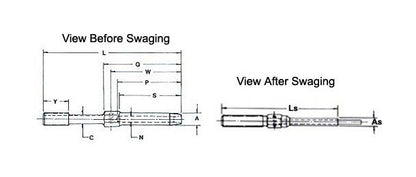

Product Specifications

Specifications As Diam

.250

Specifications A Diam

.297

Specifications C 006 000 Diain

.195

Specifications Lbs Per Piece

.05

Specifications Ls Ref

4.66

Specifications L 063 In

4.314

Specifications Nsn

4030-00-580-6785, 4030005806785

Specifications N Diam

.172

Specifications P In

1.761

Specifications Q 031 016 In

2.157

Specifications R 062 000 Diameter In

.098

Specifications S 062 000 In

1.688

Specifications Thread Size B

1/4-28

Specifications To Fit Wire Rope Dia In

5/32

Specifications W In

1.958

Specifications Y 047 In

.625

CAGE

0T9L4

NAICS

332510

PSC

4030
