Locking Studs MS21260 - Wire Rope Dia 5/8 - Thread Size 7/8-14
Locking Studs MS21260 - Wire Rope Dia 5/8 - Thread Size 7/8-14
SKU:MIL-7280b8
Secure military-grade Locking Studs for wire rope dia 5/8 - thread 7/8-14. Reliable, durable, and precise for critical applications.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

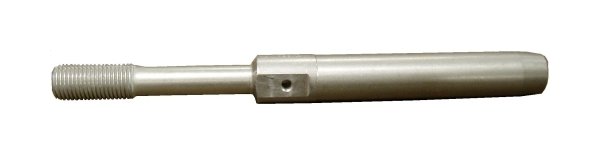

The Locking Studs MS21260 are precision-engineered to fit wire rope diameters of 5/8 inches. With a sturdy design featuring a thread size of 7/8-14, these studs offer exceptional durability and reliability for military applications. The A Diam., As. Diam., L +.063, and other specifications meet strict military standards, ensuring optimal performance in challenging conditions. Trust these locking studs for secure fastening and peace of mind in critical operations.

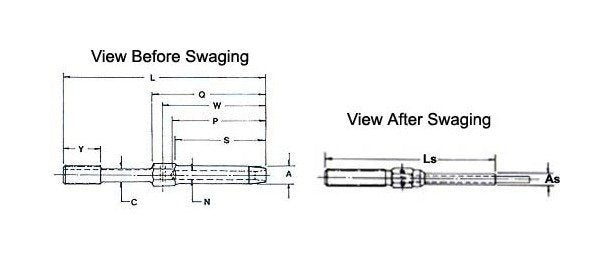

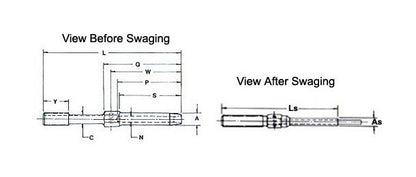

Product Specifications
Specifications As Diam
1.000
Specifications A Diam
1.109
Specifications Lbs Per Piece
1.5
Specifications Ls Ref
11.16
Specifications L 063 In
10.469
Specifications N Diam
.656
Specifications P In
5.511
Specifications Q 031 016 In
6.750
Specifications S 062 000 In
5.438
Specifications Thread Size B
(7/8)-14
Specifications To Fit Wire Rope Dia In
5/8
Specifications W In
6.093
Specifications Y 047 In
1.750
CAGE
0T9L4
NAICS
332510
PSC
4030
