Locking Top Circuit Board Support
Locking Top Circuit Board Support
SKU:01C-3899ed
Securely reinforce circuit boards with our Locking Top PCB Support from the 35-1 Series. Compliant with ASTM standards and RoHS, for .062 thick PCBs and .250 min thick chassis.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Locking Top Circuit Board Support
$29.99
Quantity: 1
Claim Your Seller Account
Locking Top Circuit Board Support
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance the stability of your circuit boards with our Locking Top Circuit Board Support from the 35-1 Series. Designed for .062 thick PCBs and .250 minimum thick chassis, these supports lock securely into both your board and chassis, providing reliable reinforcement. Made from Nylon 66 UL94V-2 material, with the option for UL94V-0 for higher fire resistance needs, these supports meet ASTM D 4066 and PA111 standards. RoHS compliant and featuring a temperature range of -40 to 185F (-40 to 85C), this support is ideal for various applications requiring secure PCB fixing.

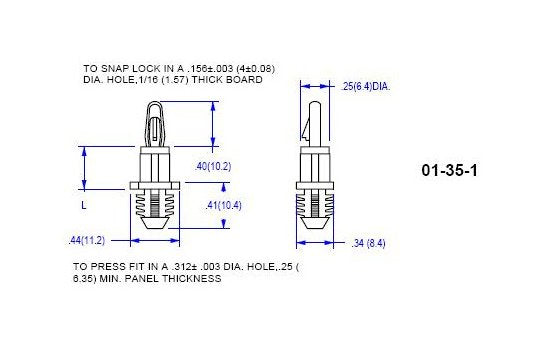

Product Specifications
Specifications Dim L 015
.250 (6.4) inches (mm)
