Locking Top Circuit Board Support (.062 PCB - .250 Chassis) - 35-1 Series
Locking Top Circuit Board Support (.062 PCB - .250 Chassis) - 35-1 Series
SKU:01C-3bf76f
Securely anchor .062 PCBs to .250 chassis with Locking Top Circuit Board Support. RoHS Compliant, durable Nylon construction. Pack of 500.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Locking Top Circuit Board Support (.062 PCB - .250 Chassis) - 35-1 Series
$29.99
Quantity: 1
Claim Your Seller Account
Locking Top Circuit Board Support (.062 PCB - .250 Chassis) - 35-1 Series
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

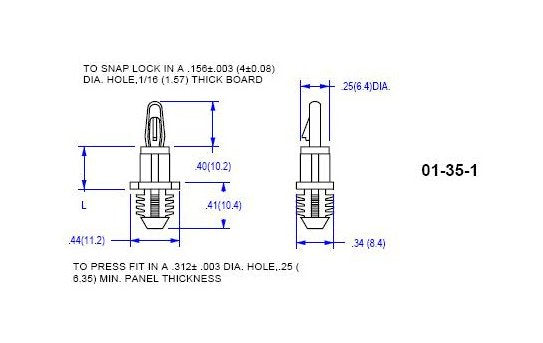

Ensure secure PCB anchoring with our Locking Top Circuit Board Support from the 35-1 Series. This innovative support features a Blind Hole/X-Mass Tree Style design for .062 thick PCBs, locking securely into .250 minimum thick chassis. Constructed from Nylon 66 UL94V-2 material (UL94V-0 available), this support is RoHS Compliant and meets ASTM D 4066, PA111 standards for reliable performance. With a temperature range of -40 to 185F (-40 to 85C), it offers durability and long-lasting use in various environmental conditions. Each pack contains 500 supports, providing ample supply for your needs.
Product Specifications
Specifications Dim L 015
1.00 (25.4) inches (mm)
