Locking Top Circuit Board Support (.062 Thick PCB)
Locking Top Circuit Board Support (.062 Thick PCB)
SKU:01C-5338be
Secure .062 thick PCBs into .250 min chassis with Locking Top Circuit Board Support. Durable Nylon 66 construction with RoHS compliance.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Locking Top Circuit Board Support (.062 Thick PCB)
$24.99
Quantity: 1
Claim Your Seller Account
Locking Top Circuit Board Support (.062 Thick PCB)
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

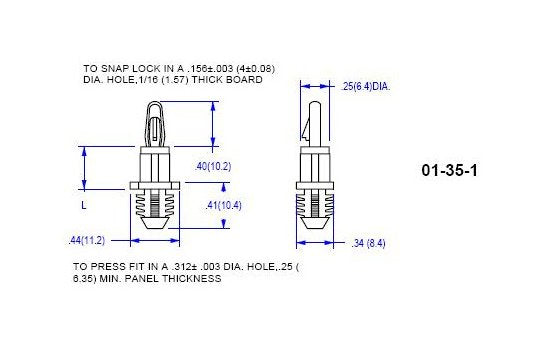

The Locking Top Circuit Board Support from the 35-1 Series is a reliable solution designed for securing .062 thick PCBs into a .250 minimum thick chassis. Constructed from durable Nylon 66 UL94V-2 material (UL94V-0 available), this PCB support features a Blind Hole/X-Mass Tree Style with locking top for added security. It offers a temperature range of -40 to 185F (-40 to 85C), meeting RoHS compliance for environmental safety. Each package contains 500 supports, each measuring approximately .875 inches (22.2mm) in length, ensuring stability and longevity in circuit board installations.
Product Specifications
Specifications Dim L 015
.875 (22.2) inches (mm)
