Locking Top Circuit Board Support
Locking Top Circuit Board Support
SKU:01C-5979f8
Securely mount PCBs with our Locking Top Circuit Board Support designed for .062" thick PCBs and .250" thick chassis. Pack of 500 in Nylon 66 material for stability.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Locking Top Circuit Board Support
$49.99
Quantity: 1
Claim Your Seller Account
Locking Top Circuit Board Support
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

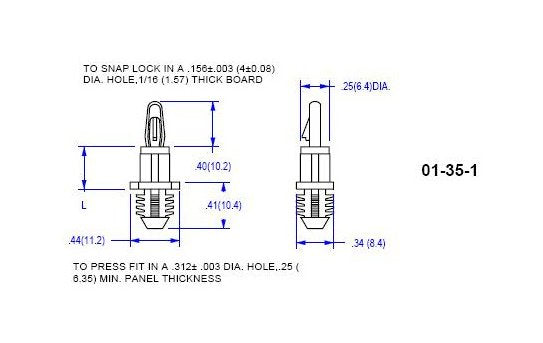

The Locking Top Circuit Board Support from our 35-1 Series is designed for secure mounting of PCBs with a .062-inch thickness onto chassis with a minimum thickness of .250 inches. Featuring a Blind Hole/X-Mass Tree Style, this support ensures a tight lock into both the PCB and the chassis, providing stability and protection. Made of Nylon 66 UL94V-2 material (UL94V-0 available), this support is compliant with ASTM D 4066, PA111, and RoHS standards. With a temperature range of -40 to 185F (-40 to 85C), it offers reliability in diverse operating conditions, all packaged conveniently in sets of 500 per bag.
Product Specifications
Specifications Dim L 015
.375 (9.5) inches (mm)
