Locking Top Circuit Board Support .156 Board Hole x .312 Chassis Hole
Locking Top Circuit Board Support .156 Board Hole x .312 Chassis Hole
SKU:01C-070b74
Securely lock circuit boards with this durable and compliant support for reliable electronic assemblies.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
Locking Top Circuit Board Support .156 Board Hole x .312 Chassis Hole
$14.99
Quantity: 1
Claim Your Seller Account
Locking Top Circuit Board Support .156 Board Hole x .312 Chassis Hole
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

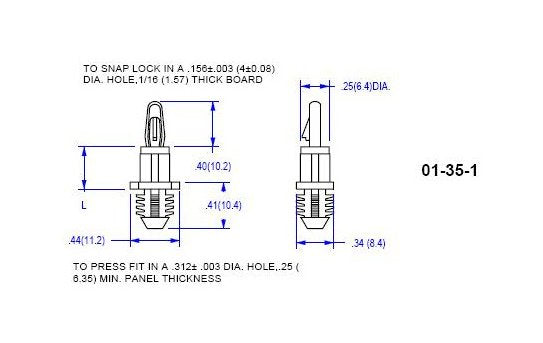

The Locking Top Circuit Board Support from the 35-1 Series is designed for secure fastening of circuit boards with .062 thickness to chassis holes with a minimum of .250 thickness. Featuring a Blind Hole/X-Mass Tree Style locking mechanism, this PCB support is crafted from Nylon 66 UL94V-2 material for robust durability. Each support ensures a reliable lock into both the PCB and chassis, with a temperature range of -40 to 185F (-40 to 85C) for versatile applications. Compliant with RoHS standards, ASTM D 4066, PA111, and UL File No E70062, this support is ideal for electronic assemblies requiring precision and reliability.
Product Specifications
Specifications Dim L 015
.750 (19.1) inches (mm)
