SKU:01C-c54374
Securely mount .062 thick PCBs into .250 min thick chassis with the 35-1 Series Locking Top Circuit Board Support. RoHS compliant, ASTM D 4066.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Locking Top Circuit Board Support for .062 Thick PCB
$24.99
Quantity: 1
Claim Your Seller Account
Locking Top Circuit Board Support for .062 Thick PCB
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 35-1 Series Locking Top Circuit Board Support is designed for secure mounting of .062 thick PCBs into chassis with a minimum thickness of .250. Featuring a Blind Hole/X-Mass Tree Style design, this support ensures a reliable lock into both the PCB and chassis. Made of Nylon 66 UL94V-2 material (UL94V-0 available), this support is compliant with RoHS regulations and ASTM D 4066, PA111 standards. With a temperature range of -40 to 185F (-40 to 85C), this support provides durability and stability for electronic assemblies.

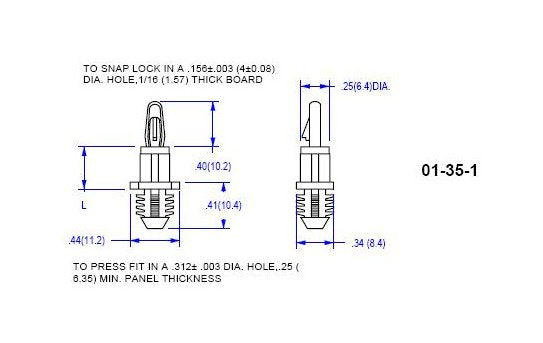

Product Specifications
Specifications Dim L 015
.500 (12.7) inches (mm)
