Locking Top Circuit Board Support for .062 Thick PCB x .250 Chassis Hole - 35-1 Series
Locking Top Circuit Board Support for .062 Thick PCB x .250 Chassis Hole - 35-1 Series
SKU:01C-4605f4
Securely lock and support .062 PCBs into .250 chassis holes with our Locking Top Circuit Board Support - 35-1 Series. RoHS compliant and ASTM certified.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Locking Top Circuit Board Support for .062 Thick PCB x .250 Chassis Hole - 35-1 Series
$24.99
Quantity: 1
Claim Your Seller Account
Locking Top Circuit Board Support for .062 Thick PCB x .250 Chassis Hole - 35-1 Series
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Locking Top Circuit Board Support from the 35-1 Series is designed to securely install on PCBs with .062 thickness and chassis holes of at least .250. Featuring a Blind Hole/X-Mass Tree Style with a locking mechanism, this support ensures stable positioning for your circuit boards. Made of Nylon 66 UL94V-2 material (UL94V-0 available), it meets ASTM D 4066 and PA111 standards, along with RoHS compliance. With a temperature range of -40 to 185F (-40 to 85C), this support offers reliable performance in various environments.
Product Specifications

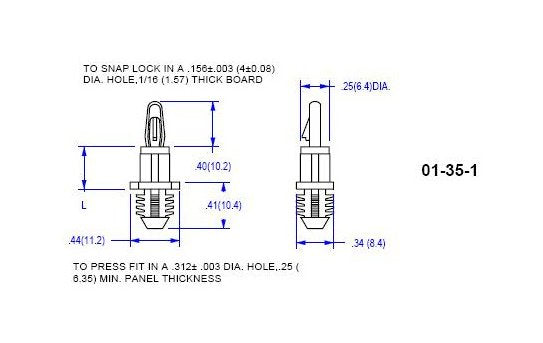

Specifications Dim L 015
.312 (7.9) inches (mm)
