Locking Top Circuit Board Support for .062 Thick PCB x .250 Min Chassis - 35-1 Series
Locking Top Circuit Board Support for .062 Thick PCB x .250 Min Chassis - 35-1 Series
SKU:01C-cf88e0
Enhance circuit board stability with Locking Top PCB Support from the 35-1 Series. Designed for secure locking into .062 thick PCBs and .250 min thick chassis. RoHS compliant, temperature resistant -40 to 185F.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Locking Top Circuit Board Support for .062 Thick PCB x .250 Min Chassis - 35-1 Series
$29.99
Quantity: 1
Claim Your Seller Account
Locking Top Circuit Board Support for .062 Thick PCB x .250 Min Chassis - 35-1 Series
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

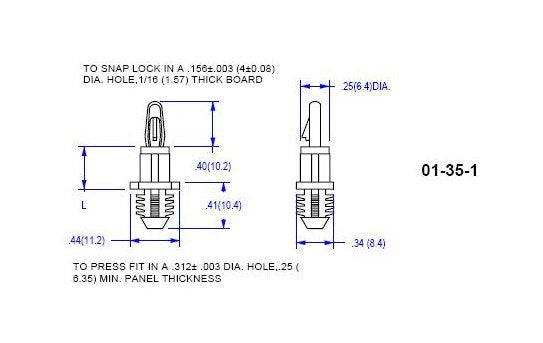

Enhance stability and security of your circuit boards with the Locking Top Circuit Board Support from the 35-1 Series. Designed for .062 thick PCBs and a minimum .250 thick chassis, this support features a Blind Hole/X-Mass Tree Style for secure locking. Made from Nylon 66 UL94V-2 material (UL94V-0 available), it meets RoHS compliance, ASTM D 4066, PA111 standards, and has a temperature range of -40 to 185F (-40 to 85C). Each pack contains 500 supports for efficient stock management.
Product Specifications
Specifications Dim L 015
.125 (3.2) inches (mm)
