Locking Wire Saddle - 00 Series Wire Routing Device
Locking Wire Saddle - 00 Series Wire Routing Device
SKU:03W-a6c64c
Secure and release wires effortlessly with our Locking Wire Saddle - 00 Series. Available in different hole styles/sizes. RoHS compliant.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Locking Wire Saddle - 00 Series Wire Routing Device
$24.99
Quantity: 1
Claim Your Seller Account
Locking Wire Saddle - 00 Series Wire Routing Device
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

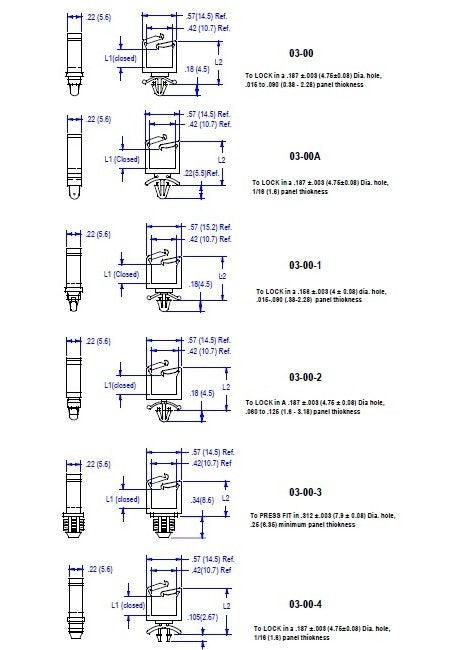

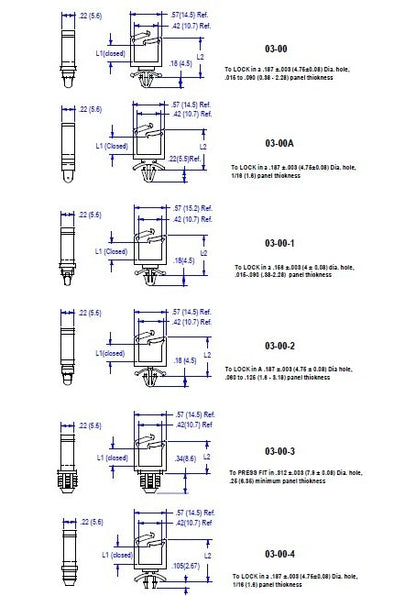

The Locking Wire Saddle from the 00 Series offers versatile mounting hole styles and sizes, featuring a unique locking design that securely fastens to the chassis while remaining easily releasable. Constructed from Nylon 66 (UL94V-2) material, this product ensures durability and reliability in wire routing applications. With RoHS compliance and optional color variations, including Natural and Black, this wire saddle provides a cost-effective solution suitable for various industries.
Product Specifications
Specifications Chassis Thickness
.015 - .090 (.38-2.28) inches (mm)
Specifications Hd Hole Diameter
.156 (4) inches (mm)
Specifications L1 Ref
.734 (18.6) inches (mm)
Specifications L2 01538
1.20 (30.48) inches (mm)
