Loctite 3D 3843 Matte Black HDT60 Resin
Loctite 3D 3843 Matte Black HDT60 Resin
SKU:PRO-be4f61
High-strength engineering resin with superior impact resistance and surface finish, ideal for various tooling applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Loctite 3D 3843 Matte Black HDT60 Resin
$49.99
Quantity: 1
Claim Your Seller Account
Loctite 3D 3843 Matte Black HDT60 Resin
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

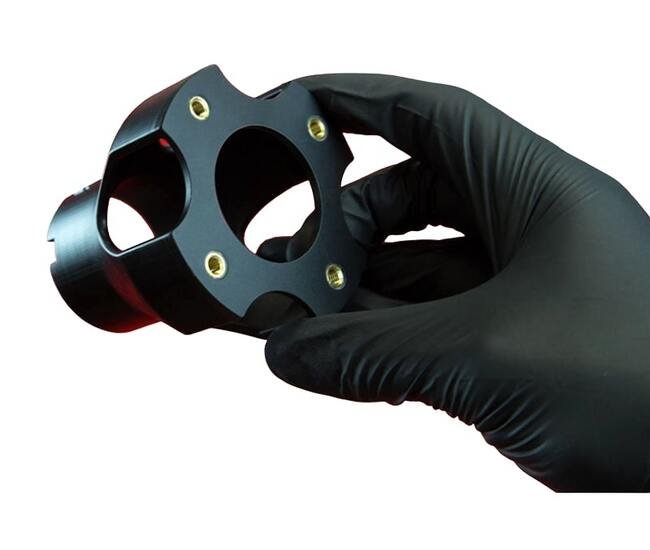

The Loctite 3D 3843 Matte Black HDT60 High Toughness Photoplastic Semi-Flexible Resin is a high-strength engineering plastic ideal for manufacturing aids, jigs, fixtures, housings, and covers. With moderate heat resistance and an HDT of 60°C, this resin offers superior impact strength and outstanding surface finish. Tested for mechanical properties and meeting ASTM standards, it provides reliability and performance for a wide range of tooling applications.
Product Specifications
Benefits Benefits
Moderate heat resistance, HDT 60 ºCTough with outstanding surface finishSuperior strength and impact resistant
Electrical Properties Alternating Current Ac Loss Characteristic
0.021
Electrical Properties Alternating Current Ac Relative Permittivi
4.8
Electrical Properties Dielectric Strength
28.1 kV/mm
Electrical Properties Dielectric Strength Tolerance
1.8 kV/mm
Electrical Properties Surface Resistivity
5.7E Ω
Electrical Properties Surface Resistivity Tolerance
15 Ω
Electrical Properties Volume Resistivity
6.5E Ω·cm
Electrical Properties Volume Resistivity Tolerance
14 Ω·cm
Liquid Properties Liquid Density
1.07 g/cm³
Liquid Properties Viscosity At 25 Degree Celsius C 77 Degree Fah
720 to 870 cP
Mechanical Properties Green Elongation At Break
52 %
Mechanical Properties Green Elongation Tolerance At Break
10 %
Mechanical Properties Green Flexural Elongation At Break
>5 %
Mechanical Properties Green Flexural Modulus
1113 MPa
Mechanical Properties Green Flexural Modulus Tolerance
23 MPa
Mechanical Properties Green Tensile Stress At Break
38.0 MPa
Mechanical Properties Green Tensile Stress At Yield
44 MPa
Mechanical Properties Green Tensile Stress Tolerance At Break
1 MPa
Mechanical Properties Green Tensile Stress Tolerance At Yield
1 MPa
Mechanical Properties Green Youngs Modulus
1572 MPa
Mechanical Properties Green Youngs Modulus Tolerance
31 MPa
Mechanical Properties Post Processed Elongation At Break
43 %
Mechanical Properties Post Processed Elongation Tolerance At Bre
10 %
Mechanical Properties Post Processed Flexural Elongation At Brea
>5 %
Mechanical Properties Post Processed Flexural Modulus
1783 MPa
Mechanical Properties Post Processed Flexural Modulus Tolerance
45 MPa
Mechanical Properties Post Processed Tensile Stress At Break
51 MPa
Mechanical Properties Post Processed Tensile Stress At Yield
53 MPa
Mechanical Properties Post Processed Tensile Stress Tolerance At
2 MPa
Mechanical Properties Post Processed Youngs Modulus
1806 MPa
Other Properties Post Processed Heat Capacity
1.5 J/(g·K)
Other Properties Post Processed Heat Capacity Tolerance
0.1 J/(g·K)
Specifications Color
Matte Black
