Low Frequency Current Sense Transformers - CSE Series
Low Frequency Current Sense Transformers - CSE Series
SKU:CUR-deb873
Monitor current in low frequency with precision using CSE Series Transformers.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Low Frequency Current Sense Transformers - CSE Series
$49.99
Quantity: 1
Claim Your Seller Account
Low Frequency Current Sense Transformers - CSE Series
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

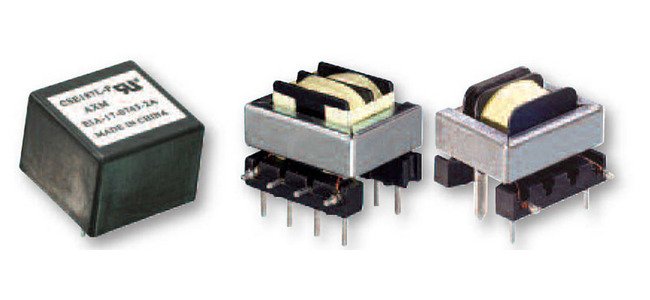

Experience unparalleled monitoring of current in low frequency applications with the CSE Series Low Frequency Current Sense Transformers. This transformer boasts a Max. Vµsec ET Product of 30000, Max. Primary DCR of 19.5 mOhm, and Max. Secondary DCR of 23 Ohm. Constructed with UL recognized materials (Class B, 130 ºC), it ensures reliability and safety. The open frame construction and overall turn ratio of 50 contribute to easy installation and accurate current sensing. Additionally, it features a hi-pot of 2,500 volts wdg-wdg and a potted version with a dielectric strength of 4,000 volts wdg-wdg. Enhance your low frequency applications with precision and quality provided by the CSE Series.
Product Specifications
Specifications Construction
Open Frame
Specifications Max Primary Dcr
19.5 mOhm
Specifications Max Secondary Dcr
23 Ohm
Specifications Max Vsec Et Product
30000
Specifications Overall Turn Ratio
50

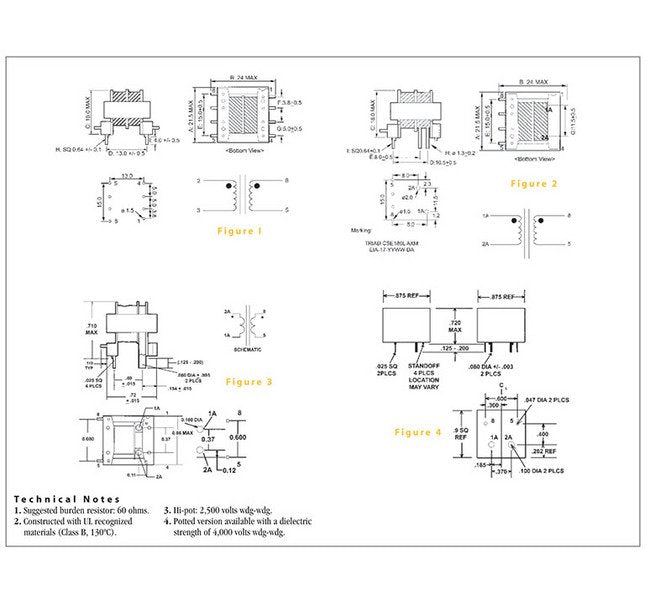

Technical Notes 0
Suggested burden resistor: 60 ohms.Constructed with UL recognized materials (Class B, 130 ºC).Hi-pot: 2,500 volts wdg-wdg.MPotted version available with a dielectric strength of 4,000 volts wdg-wdg.
