Monitor current accurately in low frequency applications with the CSE Series Current Sense Transformers. UL recognized Class B materials, max primary DCR 0.25 mOhm, and max secondary DCR 21 Ohm.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Low Frequency Current Sense Transformers - CSE Series
$129.99
Quantity: 1
Claim Your Seller Account
Low Frequency Current Sense Transformers - CSE Series
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

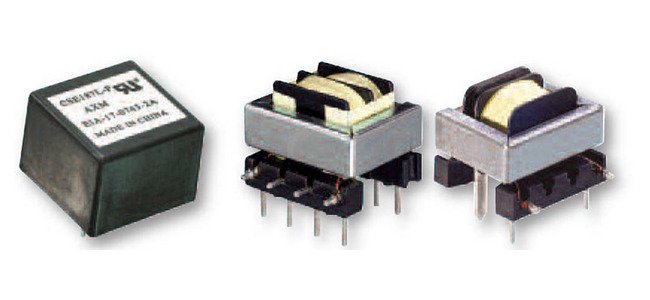

The CSE Series Low Frequency Current Sense Transformers are specifically engineered to accurately monitor current in low frequency applications. With a maximum Vµsec ET product of 30,000 and constructed with UL recognized Class B, 130 ºC materials, these transformers offer superior performance and reliability. Featuring a max primary DCR of 0.25 mOhm and a max secondary DCR of 21 Ohm, along with an overall turn ratio of 500, these transformers provide precise current sensing capabilities. Additionally, the option for a potted version with a dielectric strength of 4,000 volts wdg-wdg ensures enhanced safety and durability.
Product Specifications
Note 0
UL recognized
Specifications Construction
Open Frame
Specifications Max Primary Dcr
0.25 mOhm
Specifications Max Secondary Dcr
21 Ohm
Specifications Max Vsec Et Product
30000
Specifications Overall Turn Ratio
500

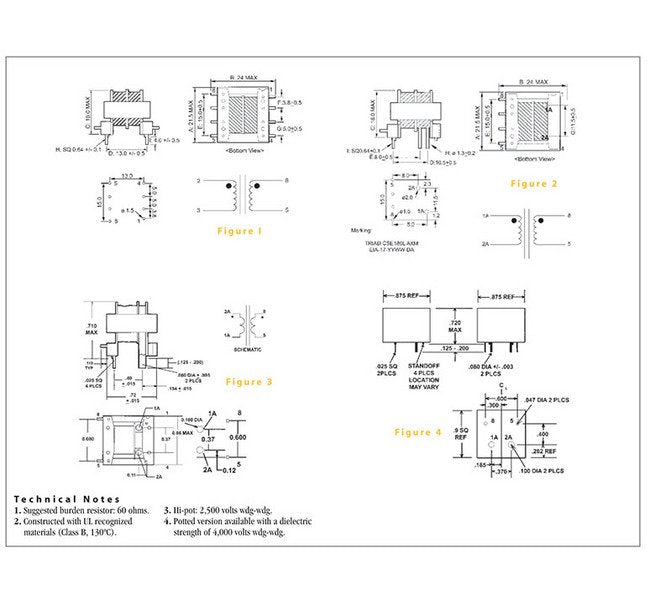

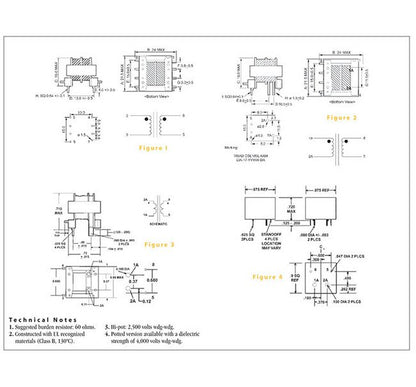

Technical Notes 0
Suggested burden resistor: 60 ohms.Constructed with UL recognized materials (Class B, 130 ºC).Hi-pot: 2,500 volts wdg-wdg.MPotted version available with a dielectric strength of 4,000 volts wdg-wdg.
