Low Frequency Current Sense Transformers - CSE Series
Low Frequency Current Sense Transformers - CSE Series
SKU:CUR-04103b
Precision monitoring for low-frequency current applications with UL recognized materials & high dielectric strength.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Low Frequency Current Sense Transformers - CSE Series
$49.99
Quantity: 1
Claim Your Seller Account
Low Frequency Current Sense Transformers - CSE Series
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

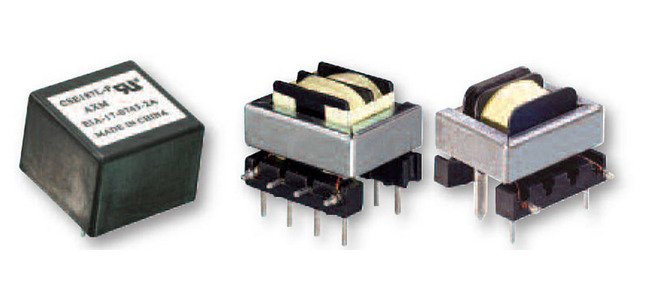

The CSE Series Low Frequency Current Sense Transformers are expertly designed to precisely monitor current in low-frequency applications. With a max. Vμsec ET product of 30,000 and constructed using UL recognized materials (Class B, 130 °C), these transformers offer exceptional performance and reliability. Featuring a potted construction with a max. primary DCR of 0.25 mOhm and max. secondary DCR of 21 Ohm, they ensure accurate current sensing. Additionally, the transformers come with a suggested burden resistor of 60 ohms and a hi-pot of 2,500 volts wdg-wdg. The potted version also boasts a dielectric strength of 4,000 volts wdg-wdg, making them ideal for a wide range of industrial applications.
Product Specifications
Note 0
UL recognized

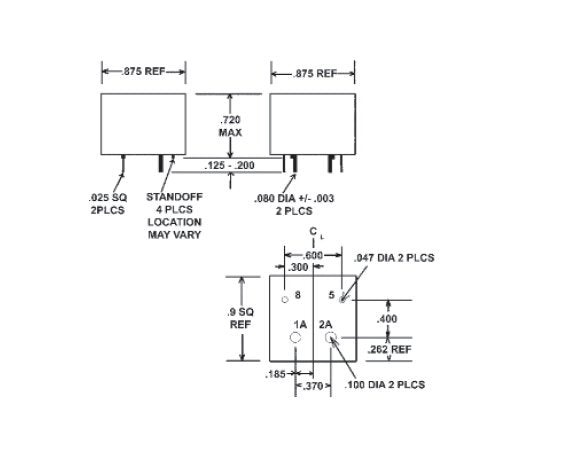

Specifications Construction
Potted
Specifications Max Primary Dcr
0.25 mOhm
Specifications Max Secondary Dcr
21 Ohm
Specifications Max Vsec Et Product
30000
Specifications Overall Turn Ratio
500
Technical Notes 0
Suggested burden resistor: 60 ohms.Constructed with UL recognized materials (Class B, 130 ºC).Hi-pot: 2,500 volts wdg-wdg.MPotted version available with a dielectric strength of 4,000 volts wdg-wdg.
