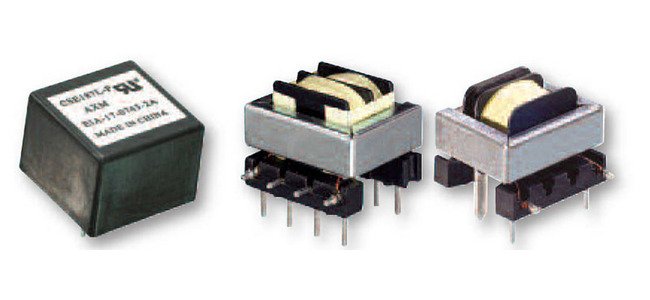

The CSE Series Low Frequency Current Sense Transformers are expertly designed to accurately monitor current in low frequency applications. With a Max. Vµsec ET Product of 30000, Max. Primary DCR of 125 mOhm, and Max. Secondary DCR of 23 Ohm, these transformers ensure precise measurements. Constructed with UL recognized materials (Class B, 130 °C) and with a Hi-pot of 2,500 volts wdg-wdg, the CSE Series also offers a potted version with a dielectric strength of 4,000 volts wdg-wdg. Trust in the reliability and performance of these transformers for your industrial needs.
Product Specifications
Specifications Construction
Open Frame
Specifications Max Primary Dcr
125 mOhm
Specifications Max Secondary Dcr
23 Ohm
Specifications Max Vsec Et Product
30000
Specifications Overall Turn Ratio
16.67

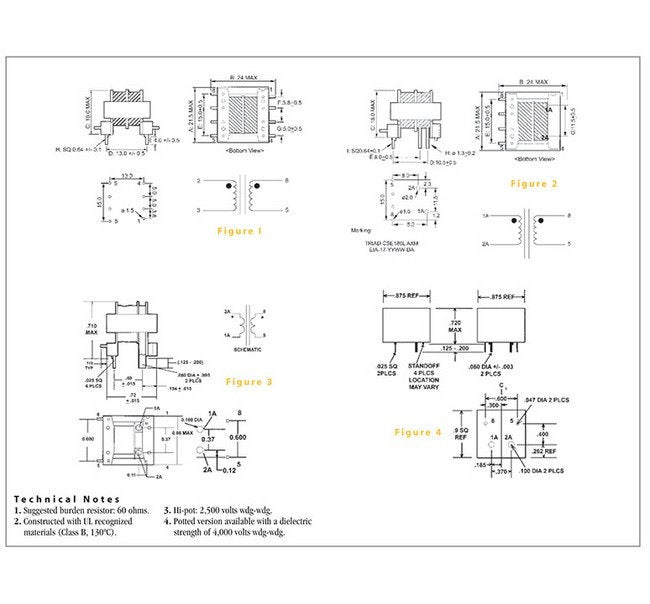

Technical Notes 0
Suggested burden resistor: 60 ohms.Constructed with UL recognized materials (Class B, 130 ºC).Hi-pot: 2,500 volts wdg-wdg.MPotted version available with a dielectric strength of 4,000 volts wdg-wdg.
