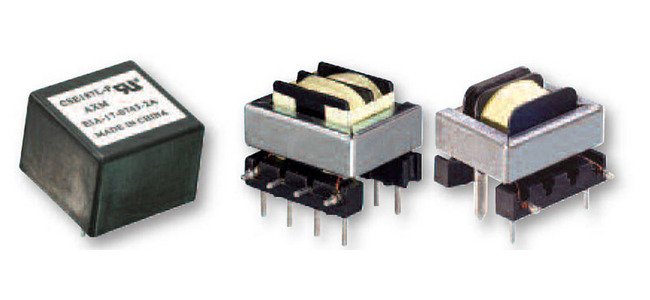

The CSE Series Low Frequency Current Sense Transformers are expertly designed to precisely monitor currents in low frequency applications. With a maximum Vµsec ET product of 30000 and a construction of open frame, these transformers offer superior performance and reliability. Featuring UL recognized materials (Class B, 130 ºC) and a hi-pot of 2,500 volts wdg-wdg, these transformers ensure safety and durability. A potted version is also available, boasting a dielectric strength of 4,000 volts wdg-wdg, making them ideal for a wide range of applications.
Product Specifications
Specifications Construction
Open Frame
Specifications Max Primary Dcr
2.0 mOhm
Specifications Max Secondary Dcr
23 Ohm
Specifications Max Vsec Et Product
30000
Specifications Overall Turn Ratio
166

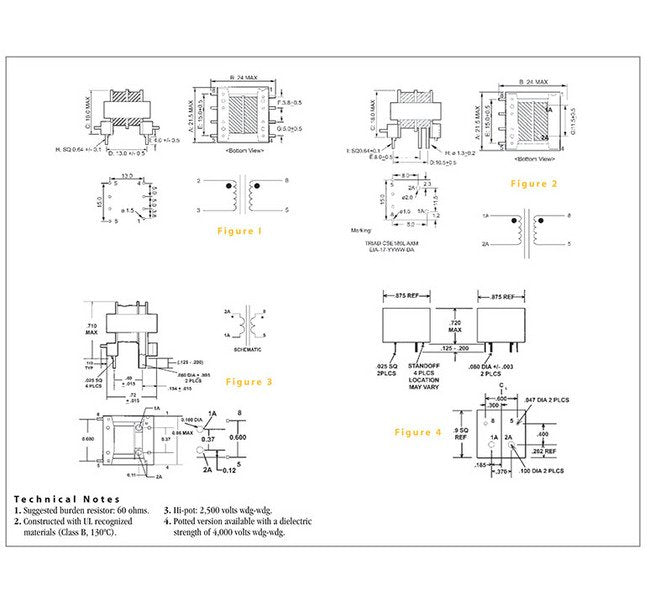

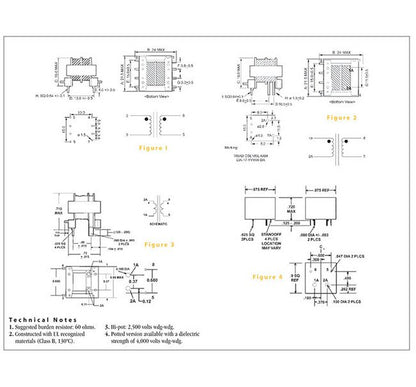

Technical Notes 0
Suggested burden resistor: 60 ohms.Constructed with UL recognized materials (Class B, 130 ºC).Hi-pot: 2,500 volts wdg-wdg.MPotted version available with a dielectric strength of 4,000 volts wdg-wdg.
