Low Frequency Current Sense Transformers (CST Series)
Low Frequency Current Sense Transformers (CST Series)
SKU:CUR-997ca4
Reliable current sense transformers for accurate current detection with UL rated 130°C materials. Ideal for industrial applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Low Frequency Current Sense Transformers (CST Series)
$29.99
Quantity: 1
Claim Your Seller Account
Low Frequency Current Sense Transformers (CST Series)
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

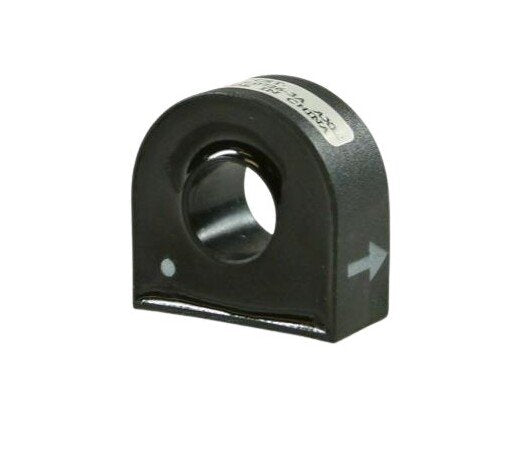

The CST Series Low Frequency Current Sense Transformers from Triad are precision-crafted to detect current flow with unparalleled reliability. Operating optimally between 50 - 60 Hz, these transformers are built using UL rated 130°C materials for superior durability. With primary current of 5A, terminating resistor of 100 Ohm, and an overall turn ratio of 1000:1, these transformers ensure precise measurements with accuracy. Perfect for industrial applications requiring stringent performance standards.
Product Specifications

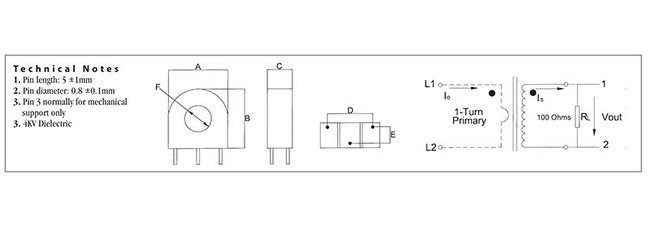

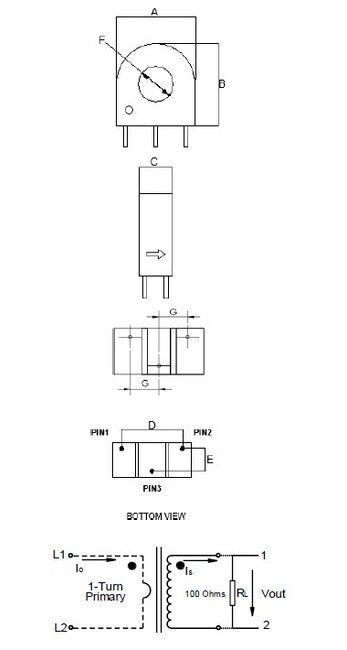

Specifications Case Dimension A
23.50 mm
Specifications Case Dimension B
24.80 mm
Specifications Case Dimension C
12.00 mm
Specifications Case Dimension D
15.00 mm
Specifications Case Dimension E
7.50 mm
Specifications Case Dimension F
8.50 mm
Specifications Case Dimension G
7.50 mm
Specifications Electical Load At Rated Primary Current Ip 100
0.0958 V·A
Specifications Nominal Dcr
40.00 Ohm
Specifications Overall Turn Ratio
1000:1
Specifications Primary Current Ip
5 A
Specifications Reference Net Weight
20.0 g
Specifications Terminating Resistor
100 Ohm | 0.0025 W
Specifications Ul Rated Material Temperature
130 ºC
Technical Notes 0

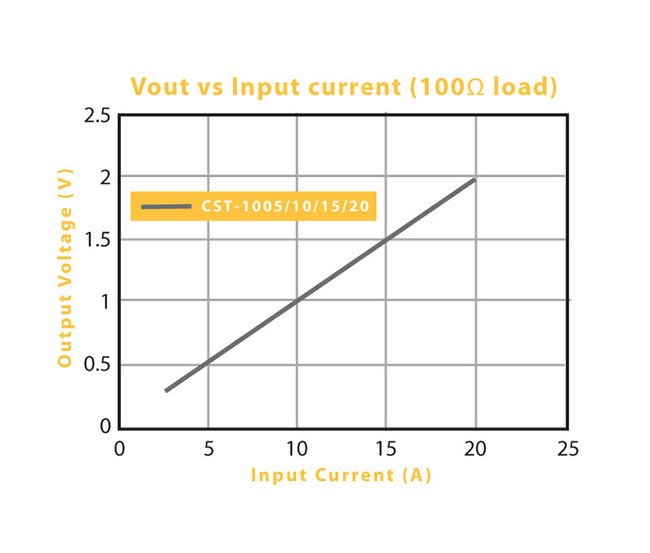

Pin3 for mechanical support only.Pin diameter is 0.8±0.1 mm.Pin length is 5±1mm.Accuracy: ±3% from 2 to 20A.Operating Temperature: -10 to 65°CStorage Temperature: -25 to 85°C
