Low Loss (LL) Bend Insensitive OM3 Multimode Fiber Xtreme8™ Multi-Fiber Termination Push-On (MTP®) to Duplex Lucent Connector (LC) Module
Low Loss (LL) Bend Insensitive OM3 Multimode Fiber Xtreme8™ Multi-Fiber Termination Push-On (MTP®) to Duplex Lucent Connector (LC) Module
SKU:XTR-a6200c
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Low Loss (LL) Bend Insensitive OM3 Multimode Fiber Xtreme8™ Multi-Fiber Termination Push-On (MTP®) to Duplex Lucent Connector (LC) Module
$49.99
Quantity: 1
Claim Your Seller Account
Low Loss (LL) Bend Insensitive OM3 Multimode Fiber Xtreme8™ Multi-Fiber Termination Push-On (MTP®) to Duplex Lucent Connector (LC) Module
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

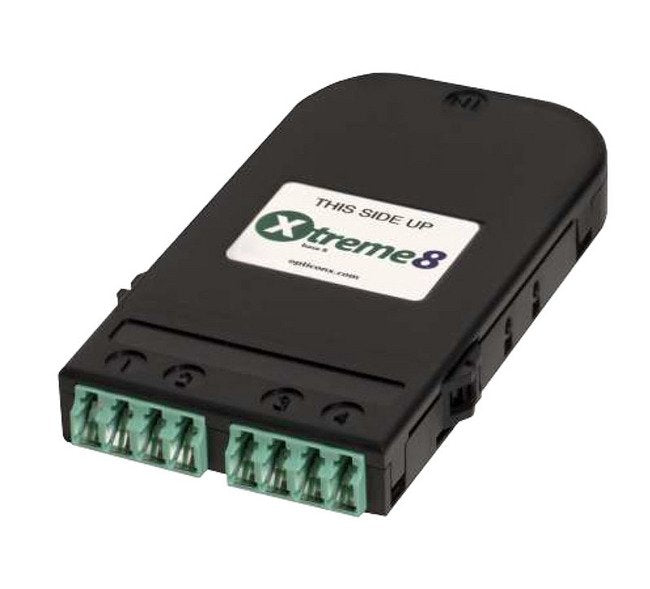

Xtreme8™ modules are the interface between 8 fiber MTP® trunks and duplex LC patch cables.
Product Specifications
Features
High Density - Up to 144 fibers in a 1U patch panelShuttered LC Adapters - Safer operation, eliminates need for dust capsLow Insertion Loss - Better link loss performance for longer distances and more interconnect pointsBend Insensitive Fibers - Higher performance fiber. Standard for all cassette modules
General Specifications Fiber Count
8
General Specifications Front Adapter Color
Aqua
General Specifications Front Adapter Type
Shuttered Lucent Connector (LC)
General Specifications Polarity
Universal Polarity
General Specifications Port Count
4
General Specifications Rear Adapter Color
Aqua
General Specifications Rear Adapter Type
Pinned Multi-Fiber Termination Push-On (MTP®)
Note
MTP® and MTP Elite® are registered trademarks of USConecMade in the USA.
Optical Specifications Loss Type
Maximum Module Insertion Loss
Optical Specifications Low Loss Ll
0.50 dB
Ordering Information Fiber Type
OM3
