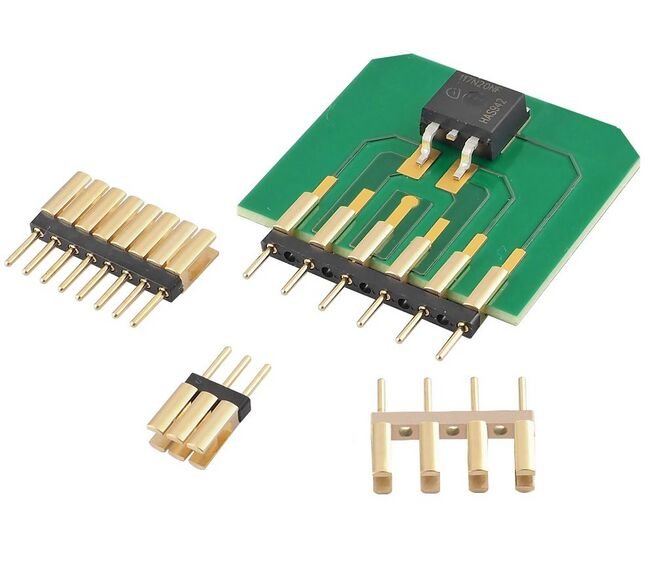

Low Outgassing Slit Pin for PC Board Card Edge, 2.54mm Pitch
Low Outgassing Slit Pin for PC Board Card Edge, 2.54mm Pitch
SKU:SOC-6abf93
Customizable Low Outgassing Slit Pin for PC Board Card Edge, mates with sockets, handles high current loads.
Regular price
$9.99
Regular price
Sale price
$9.99
Unit price
per
Initiate Order
Low Outgassing Slit Pin for PC Board Card Edge, 2.54mm Pitch
$9.99
Quantity: 1
Claim Your Seller Account
Low Outgassing Slit Pin for PC Board Card Edge, 2.54mm Pitch
$9.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Low Outgassing Slit Pin is ideal for soldering onto PC board pads, with customizable pin lead diameter options. Designed to mate seamlessly with sockets, this durable pin can handle high current loads. Featuring JCC brand, high-temperature resistance up to 250°C, a 2.54mm pitch, and AC dielectric strength of 300 Vrms, this pin ensures reliable performance in demanding applications.
Product Specifications
Material And Finish Insulator Material
High Temperature Thermoplastic | Polyetheretherketone (PEEK)
Material And Finish Plug Finish
Gold (Au) Plating Over Nickel (Ni)
Material And Finish Plug Material
Brass
Specifications Alternating Current Ac Dielectric Strength 1 Minu
300 Vrms
Specifications High Temperature
250 ºC
Specifications Maximum Current
8 A
Specifications Minimum Insulation Resistance At 300 Volt V Direc
500 MΩ
Specifications Number Of Pins
2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12
Specifications Pitch
2.54 mm
