LOW PRESSURE RELIEF VALVE, SRVL Series, 1/2'' MNPT Inlet, 12mm Superlok Outlet
LOW PRESSURE RELIEF VALVE, SRVL Series, 1/2'' MNPT Inlet, 12mm Superlok Outlet
SKU:REL-bc2357
Precision-engineered LOW PRESSURE RELIEF VALVE for industrial applications, ensures accurate pressure control and maximum safety in operations.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
LOW PRESSURE RELIEF VALVE, SRVL Series, 1/2'' MNPT Inlet, 12mm Superlok Outlet
$129.99
Quantity: 1
Claim Your Seller Account
LOW PRESSURE RELIEF VALVE, SRVL Series, 1/2'' MNPT Inlet, 12mm Superlok Outlet
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SUPERLOK® SRVL Series Low Pressure Relief Valve is a reliable solution designed for various industrial applications. With a maximum working pressure of 6000 psig | 413 bar and a cracking pressure range of 225~6000 psig | 15.5~414 bar, this valve offers flexibility and precision in pressure control. Its compact design, adjustable cracking pressure, and lock wire feature ensure ease of use and accurate pressure settings. Tested at the factory, each valve guarantees performance and repeatability. Suitable for different set pressure ranges, this valve meets the highest quality standards for safety and efficiency.
Product Specifications
Features Features
Compact designCracking pressure adjustable externallyLock wire feature secures a given pressure settingEach and every valve is tested at the factory
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Set Pressure Set Pressure
Set pressure is the upstream pressure at which the first indication of flow occurs.Set pressure of each valve after initial relief is repeatable within ±5% at room temperature
Technical Specs Cracking Pressure Range
225~6000 psig | 15.5~414 bar

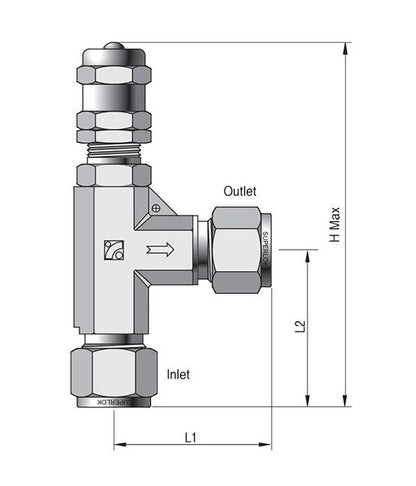

Technical Specs Dimension H
103.0 mm
Technical Specs Dimension L1
46.7 mm
Technical Specs Dimension L2
35.7 mm
Technical Specs Inlet End Connections
1/2 in. Male National Pipe Thread (MNPT)
Technical Specs Maximum Working Pressure
6000 psig | 413 bar
Technical Specs Orifice Size
4.8 mm
Technical Specs Outlet End Connections
12 mm Superlok®
Technical Specs Series
SRVH
