Low Profile 1 1/2 Series 12VDC Electromagnet
Low Profile 1 1/2 Series 12VDC Electromagnet
SKU:EMP-a01acc
Enhance your lifting capabilities with the Low Profile 1 1/2 Series Electromagnet's powerful performance on both small and large workpieces.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Low Profile 1 1/2 Series 12VDC Electromagnet
$129.99
Quantity: 1
Claim Your Seller Account
Low Profile 1 1/2 Series 12VDC Electromagnet
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

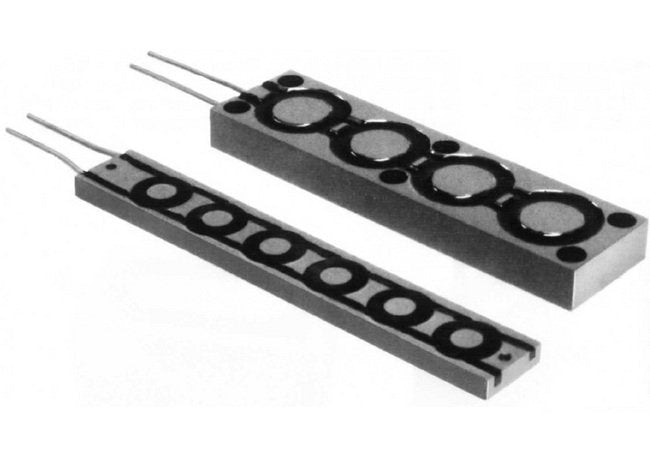

The Low Profile 1 1/2 Series 12VDC Electromagnet is a powerful solution designed for both small and large workpieces. With a low profile height of 1/2 in., this electromagnet features a multiple pole design that enhances performance on thin materials. Its shallow field depth and excellent pounds-per-square-inch ratings make it ideal for lifting one sheet at a time or multiple workpieces on a spreader bar. Suitable for single or multiple unit applications, it operates effectively with rectifier-controllers equipped with variable power, ensuring efficient and precise lifting capabilities.
Product Specifications
Manufacturing Notes 0
Any group of 12 volt electromagnets to be energized by a single rectifier-controller should not exceed 100 watts.Automated systems require âAU Seriesâ Rectifier-ControllersManual applications require âMA or MR Seriesâ Rectifier-ControllersConsult factory for applications information and optional magnet also and controller configuration
Specifications Dc Voltage
12 V

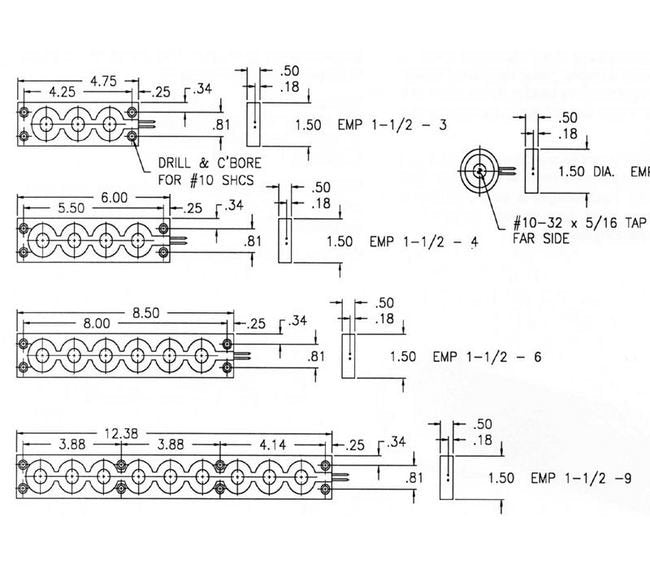

Specifications Height
1/2 in
Specifications Length A
1 1/2 in
Specifications Mounting Screw
#10 Socket Head Screws
Specifications Net Weight
2 oz
Specifications Power
3.8 W
Specifications Thickness Of Cross Section
1/2 in
Specifications Width Of Cross Section
1 1/2 in
