Low Profile 3/16-Inch Aluminum Collar for Secure Fastening

Name: Low Profile 3/16-Inch Aluminum Collar for Secure Fastening
Brand: Ornit USA
SKU: LOW-b2fda4
Price: 39.99 USD
Availability: OutOfStock

SKU:LOW-b2fda4

Securely fasten materials with precision using Ornit's 3/16-inch Low Profile Aluminum Collar, ideal for institutional needs.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

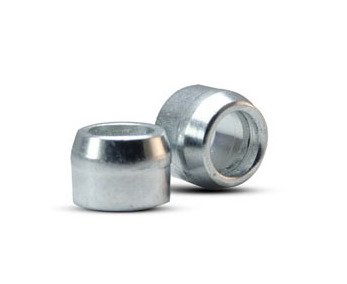

The 3/16-inch Low Profile Aluminum Collar by Ornit is designed for precise and secure fastening applications. Made of AL-6061 aluminum with a natural finish and zinc coating, this collar ensures durability and corrosion resistance. With a head shape that provides a low profile grip, it fits hole diameters ranging from 0.304 to 0.311 inches. The collar's dimensions and weight per 1000 pieces meet industry standards, offering reliability and strength for various institutional procurement needs.

Product Specifications

Note Note

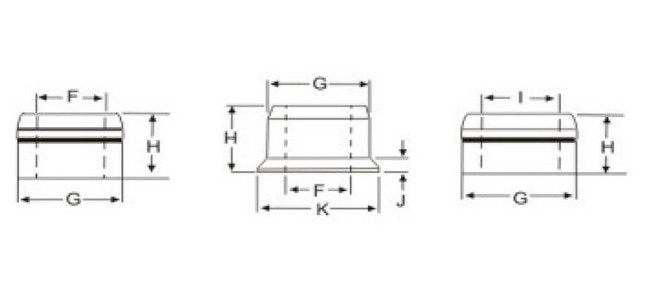

When using Low Profile collars, subtract "J" dimension from thickness of material being fastened to determine grip number.

Technical Specs Brands

Ornit

Technical Specs Coating

Zinc

Technical Specs Diameter

3/16 in

Technical Specs Diameter F

0.187 to 0.196 in

Technical Specs Finish

Natural

Technical Specs Head Shape

Low Profile

Technical Specs Length H

0.162 - 0.132 in

Technical Specs Material

AL-6061 Aluminum (Annealing)

Technical Specs Maximum Dimension J

0.094 in

Technical Specs Maximum Hole Diameter

0.311 in

Technical Specs Minimum Hole Diameter

0.304 in

Technical Specs Weight Per 1000 Pieces

0.28 kg

Low Profile 3/16-Inch Aluminum Collar for Secure Fastening
