Low Profile Aluminum Collar - 5/16 Inch Diameter
Low Profile Aluminum Collar - 5/16 Inch Diameter
SKU:LOW-cc0dc0
Premium Low Profile Aluminum Collar for secure and sleek fastening applications. Diameter: 5/16 in.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Low Profile Aluminum Collar - 5/16 Inch Diameter
$29.99
Quantity: 1
Claim Your Seller Account
Low Profile Aluminum Collar - 5/16 Inch Diameter
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

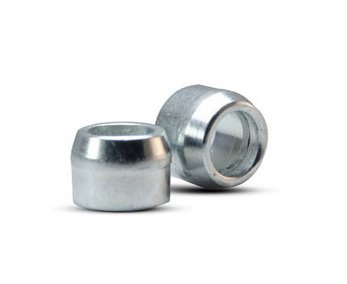

The 5/16 Inch Diameter Low Profile Aluminum Collar by Ornit is a premium solution for fastening applications, crafted from AL-6061 Aluminum for durability. With a natural finish and zinc coating, this collar offers a sleek look while providing a maximum hole diameter of 0.494 inches and a minimum hole diameter of 0.485 inches. Its low profile design and precise dimensions make it ideal for secure fastening, ensuring a firm grip without compromising on quality.
Product Specifications
Note Note

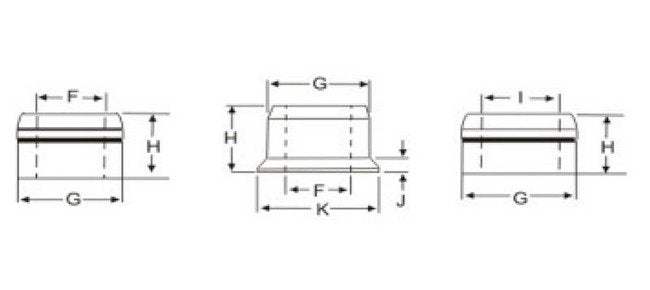

When using Low Profile collars, subtract "J" dimension from thickness of material being fastened to determine grip number.
Technical Specs Brands
Ornit
Technical Specs Coating
Zinc
Technical Specs Diameter
5/16 in
Technical Specs Diameter F
0.304 to 0.312 in
Technical Specs Finish
Natural
Technical Specs Head Shape
Low Profile
Technical Specs Length H
0.255 - 0.225 in
Technical Specs Material
AL-6061 Aluminum (Annealing)
Technical Specs Maximum Dimension J
0.125 in
Technical Specs Maximum Hole Diameter
0.494 in
Technical Specs Minimum Hole Diameter
0.485 in
Technical Specs Weight Per 1000 Pieces
1.95 kg
