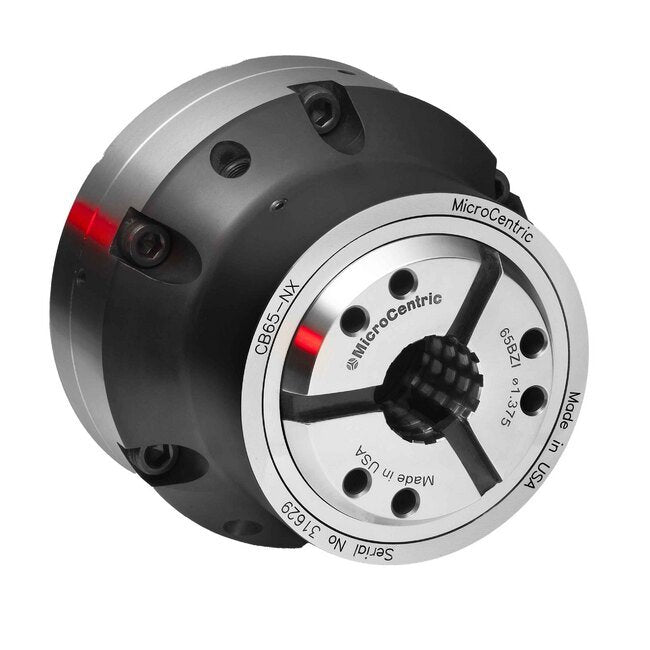

Low Profile CB-NX Collet Chuck
Low Profile CB-NX Collet Chuck
SKU:QUI-4abe54
Experience precision and stability with the Low Profile CB-NX Collet Chuck - Dead Length Design. Designed for maximum tool clearance and high accuracy.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Low Profile CB-NX Collet Chuck
$499.99
Quantity: 1
Claim Your Seller Account
Low Profile CB-NX Collet Chuck
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Low Profile CB-NX Collet Chuck - Dead Length Design is engineered for maximum tool clearance with its reduced diameter nose and short overall length. Its fixed collet design eliminates pull back effect during clamping, ensuring precision and stability. With radial adjusting screws for precise alignment, this chuck offers a clamping range of +/- .020 in, a linear chuck stroke of .160 in, and a max clamp force of 23,606 lbs. Hardened components and lubricated-for-life design guarantee high accuracy, minimal maintenance, and long-term durability. Ideal for quick change chucks, this collet chuck is a reliable choice for optimizing the Z axis on machining centers.
Product Specifications
Specifications Accuracy
.0008 in | .020 mm

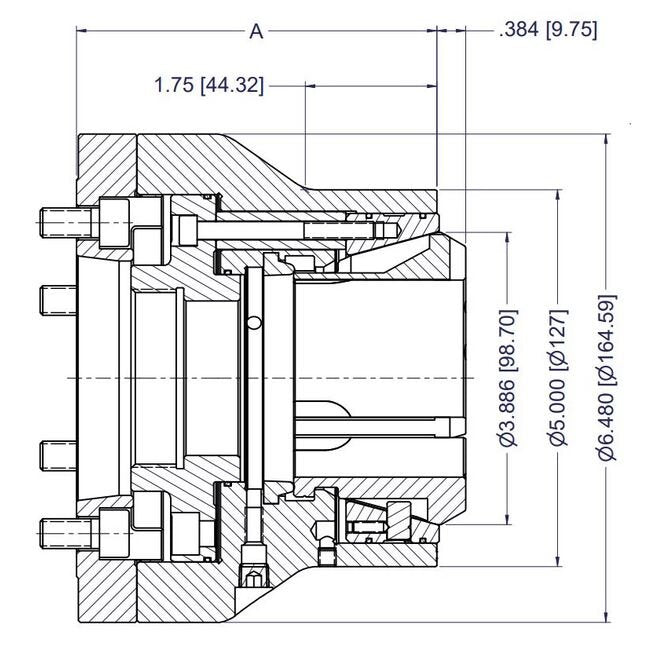

Specifications A Dimension
4.583 in | 116.41 mm
Specifications Clamping Range
+/- .020 in | +/- 0.5 mm
Specifications Collet Model
65BZI
Specifications Item No
15 065 143
Specifications Linear Chuck Stroke
.160 in | 4 mm
Specifications Max Clamping Diameter
2.625 in | 66 mm
Specifications Max Clamp Force
23,606 lbs | 105 kN
Specifications Max Draw Tube Thread
M60x2
Specifications Max Speed
6,000 rpm
Specifications Min Clamping Diameter
0.187 in | 5 mm
Specifications Spindle Nose
140mm
Specifications Weight
25 lb | 11.3 kg
