Low Profile Fluoropolymer (PTFE) Heaters - HXFL Series
Low Profile Fluoropolymer (PTFE) Heaters - HXFL Series
SKU:HEA-205223
Efficient, durable HXFL Series Fluoropolymer (PTFE) Heaters for electric immersion heating applications. 6000W, 240V, with thermal protection up to 250°F. CE, CSA, UL Listed.
Regular price
$789.99
Regular price
Sale price
$789.99
Unit price
per
Initiate Order
Low Profile Fluoropolymer (PTFE) Heaters - HXFL Series
$789.99
Quantity: 1
Claim Your Seller Account
Low Profile Fluoropolymer (PTFE) Heaters - HXFL Series
$789.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

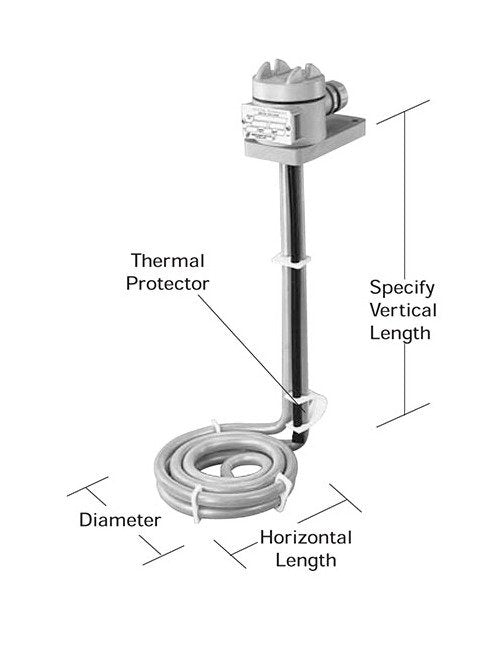

The HXFL Series Low Profile L-Shaped Fluoropolymer (PTFE) Heaters offer exceptional durability and efficiency for electric immersion heating applications. With a watt density of 10 W/in², these heaters deliver 6000W at 240V, ensuring reliable performance. The included replaceable thermal protectors provide safety for solutions up to 250°F, while the polypropylene guards ensure further protection. Manufactured by Process Technology, these heaters are CE, CSA, and UL Listed, meeting stringent industry standards for quality and safety.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Construction
Ground wire is welded to stainless steel sheath.
Specifications Diameter
13 " | 330 mm
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HXFL13-R*G
Specifications Horizontal Length
13 " | 330 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer
Specifications Max Cold Zone
25 " | 635 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Phase
Single
Specifications Series
HXFL
Specifications Shipping Weight
22.0 Pound
Specifications Standard Vertical Length
18 " | 457 mm
Specifications Volts
240 V
Specifications Watts
6000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
22.0 lbs | 10.0 kg
