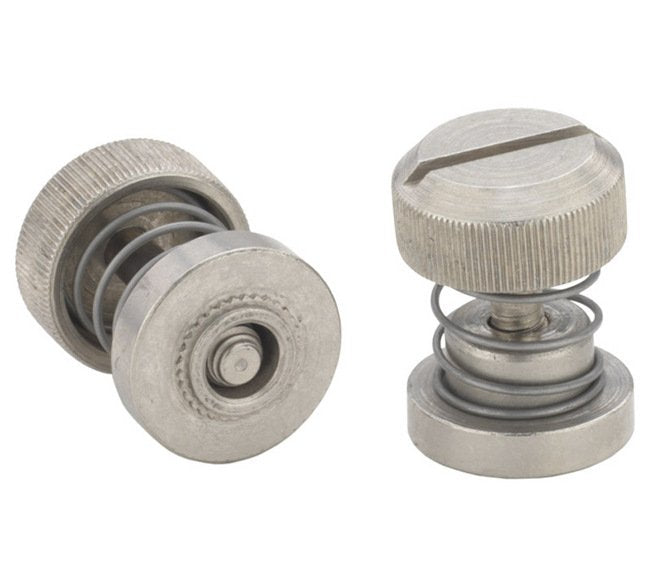

Low Profile Knob Captive Panel Screw PF32 - Unified
Low Profile Knob Captive Panel Screw PF32 - Unified
SKU:PEM-89dc0c
Sleek low-profile captive panel screw with convenient slotted head, perfect for secure fastening in diverse applications.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
Low Profile Knob Captive Panel Screw PF32 - Unified
$14.99
Quantity: 1
Claim Your Seller Account
Low Profile Knob Captive Panel Screw PF32 - Unified
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Low Profile Knob Captive Panel Screw PF32 offers a sleek design meeting both functional and aesthetic needs. It features a convenient large slotted head for easy tool or finger operation. With a thread size of .250-20 and materials meeting tough industry standards, this screw ensures durability and reliability. Ideal for various applications where a secure panel fastening solution is required.
Product Specifications

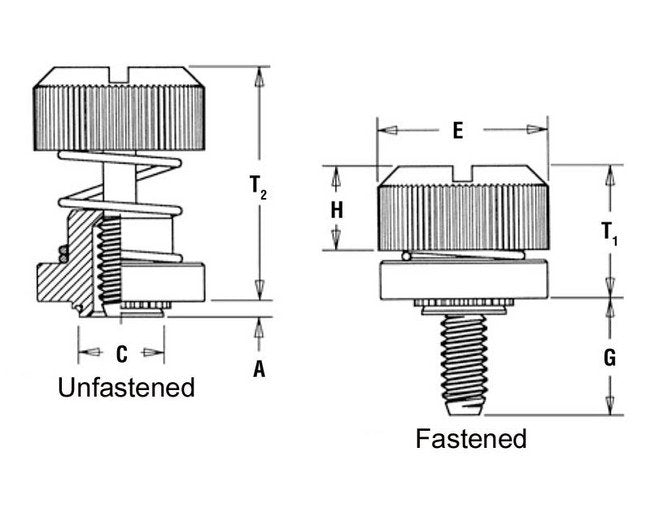

Specifications A Shank Max
.058 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
.374 in
Specifications E 010
.625 in
Specifications Finish Retainer
Bright Nickel over Copper Flash per ASTM B689
Specifications Finish Screw
Bright nickel over copper flash per ASTM B689
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 60 or Less (Hardness Rockwell âBâ Scale)HB 107 or Less (Hardness Brinell)
Specifications G 015
.350 in
Specifications Hole Size In Sheet 0003 0000
.375 in
Specifications H 005
.242 in
Specifications Material Retainer
Carbon Steel
Specifications Material Screw
Carbon Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
.38 in
Specifications Min Sheet Thickness
.060 in
Specifications Screw Length Code
32
Specifications T1 Max
.385 in
Specifications T2 Nom
.675 in
Specifications Thread Code
0420
Specifications Thread Size
.250-20 (1/4-20)
Specifications Thread Specification
ANSI B1.1, 2A
Specifications Type
PF32
