Low Profile Knob Spring-loaded Captive Panel Screw PF31 - Unified

Low Profile Knob Spring-loaded Captive Panel Screw PF31 - Unified

PEM-56eb39

Sleek and functional Low Profile Knob Spring-loaded Captive Panel Screw PF31, meeting ANSI B1.1 standards for durability and performance.

$12.99
$12.99
Sale

Initiate Order

Low Profile Knob Spring-loaded Captive Panel Screw PF31 - Unified

Low Profile Knob Spring-loaded Captive Panel Screw PF31 - Unified

$12.99

Quantity: 1

Claim Your Seller Account

Low Profile Knob Spring-loaded Captive Panel Screw PF31 - Unified

Low Profile Knob Spring-loaded Captive Panel Screw PF31 - Unified

$12.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

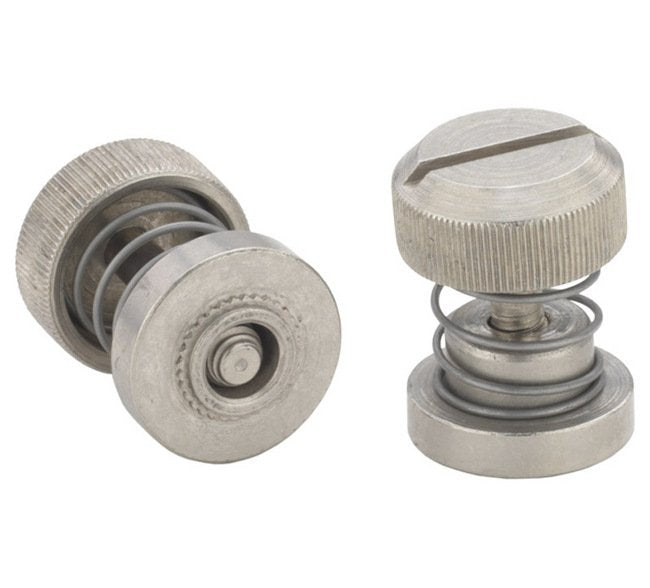

The Low Profile Knob Spring-loaded Captive Panel Screw PF31 offers a sleek design that meets functional and cosmetic needs with ease. Featuring a convenient large slotted head for tool or finger operation, this screw is ideal for various applications. With specifications meeting ANSI B1.1 standards and materials crafted from high-quality steel and stainless steel, this screw ensures durability and performance. Compliant with HRB 60 or less sheet hardness requirements, it is suitable for multiple industries.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

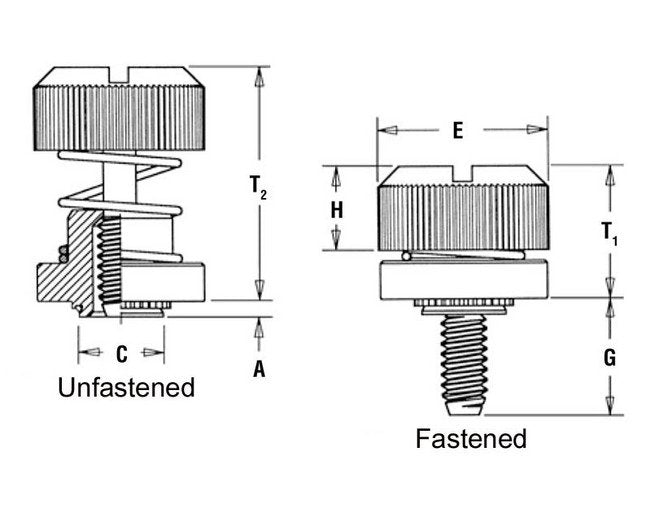

Product Specifications

Specifications A Shank Max
0.038 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
.202 in
Specifications E 010
.406 in
Specifications Finish Retainer
Bright Nickel over Copper Flash per ASTM B689
Specifications Finish Screw
Bright nickel over copper flash per ASTM B689
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 60 or Less (Hardness Rockwell “B” Scale)HB 107 or Less (Hardness Brinell)
Specifications G 015
.300 in
Specifications Hole Size In Sheet 0003 0000
.203 in
Specifications H 005
.202 in
Specifications Material Retainer
Carbon Steel
Specifications Material Screw
Heat-Treated Carbon Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
.260 in
Specifications Min Sheet Thickness
.040 in
Specifications Screw Length Code
30
Specifications T1 Max
.325 in
Specifications T2 Nom
.595 in
Specifications Thread Code
440
Specifications Thread Size
.112-40 (#4;-40)
Specifications Thread Specification
ANSI B1.1, 2A
Specifications Type
PF31
