Low Profile PTFE Heaters - HXF Series
Low Profile PTFE Heaters - HXF Series
SKU:HEA-925de9
Efficient and durable Low Profile PTFE Heaters for industrial applications, featuring 2000W power and corrosion-resistant fluoropolymer build.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Low Profile PTFE Heaters - HXF Series
$349.99
Quantity: 1
Claim Your Seller Account
Low Profile PTFE Heaters - HXF Series
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

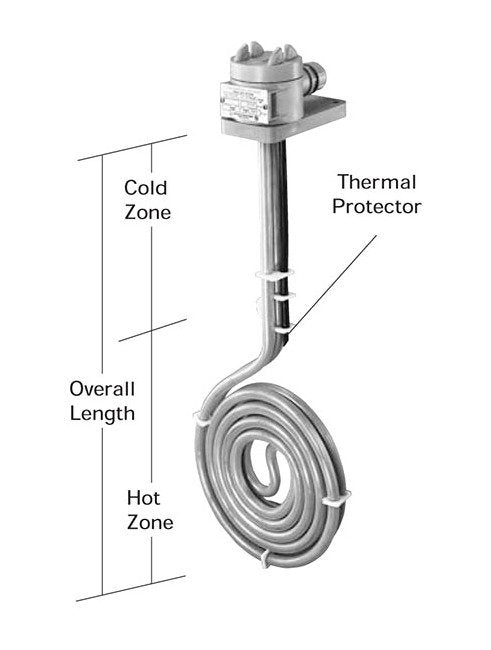

The HXF Series Low Profile Fluoropolymer (PTFE) Heaters are designed for efficient heating applications, featuring a robust construction with a single-phase power supply. With a wattage of 2000W and a watt density of 10 W/in², these heaters provide reliable performance. The fluoropolymer material ensures resistance to corrosive chemicals, making them ideal for various industrial settings. Additionally, the included thermal protectors offer flexibility for different solution temperatures, while the welded ground wire enhances safety. Certified by CE, CSA, and UL, these heaters meet stringent quality standards for dependable operation.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Construction
Ground wire is welded to stainless steel sheath.
Specifications Diameter
8 " | 203 mm
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HXF08-17G
Specifications Hot Zone
9 " | 229 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer
Specifications Max Cold Zone
35 " | 889 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
17 " | 432 mm
Specifications Phase
Single
Specifications Series
HXF Series
Specifications Shipping Weight
8.0 Pound
Specifications Std Cold Zone
8 " | 203 mm
Specifications Volts
480 V
Specifications Watts
2000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
8.0 lbs | 3.6 kg
