Low Profile Stainless Steel Collar, 5/16 Inch Diameter

Name: Low Profile Stainless Steel Collar, 5/16 Inch Diameter
Brand: Ornit USA
SKU: LOW-1a5255
Price: 45.99 USD
Availability: OutOfStock

SKU:LOW-1a5255

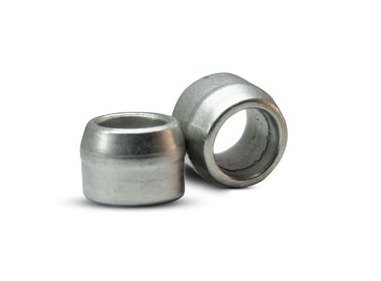

Ornit 5/16" Low Profile Stainless Steel Collar, ideal for precise and durable fastening applications. Corrosion-resistant with sleek zinc finish.

$45.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 5/16 Inch Low Profile Stainless Steel Collar by Ornit offers exceptional durability and precise dimensions, making it ideal for fastening applications in various industries. Crafted from high-quality stainless steel with a zinc finish, this collar ensures superior corrosion resistance and a sleek appearance. With a diameter range of 0.304 to 0.312 inches and a maximum hole diameter of 0.494 inches, this collar provides a secure and reliable fastening solution. Designed with a low profile head shape, it minimizes protrusion, enhancing safety and aesthetics. Additionally, its weight-per-1000-pieces of 3.9 kg ensures cost-effective bulk usage. Compliant with industry standards, this collar is a dependable choice for both consumer and institutional buyers.

Product Specifications

Note Note

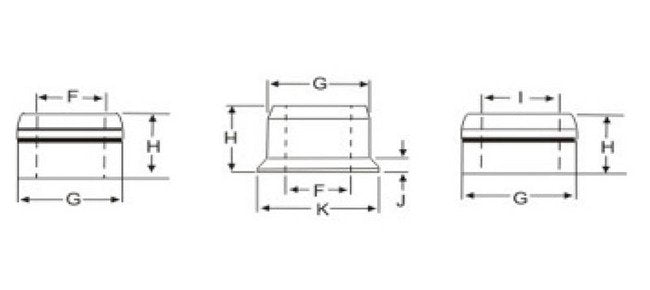

When using Low Profile collars, subtract "J" dimension from thickness of material being fastened to determine grip number.

Technical Specs Brands

Ornit

Technical Specs Coating

Zinc

Technical Specs Diameter

5/16 in

Technical Specs Diameter F

0.304 to 0.312 in

Technical Specs Finish

Zinc

Technical Specs Head Shape

Low Profile

Technical Specs Length H

0.255 - 0.225 in

Technical Specs Material

Stainless Steel

Technical Specs Maximum Dimension J

0.125 in

Technical Specs Maximum Hole Diameter

0.494 in

Technical Specs Minimum Hole Diameter

0.485 in

Technical Specs Weight Per 1000 Pieces

3.9 kg

Low Profile Stainless Steel Collar, 5/16 Inch Diameter
