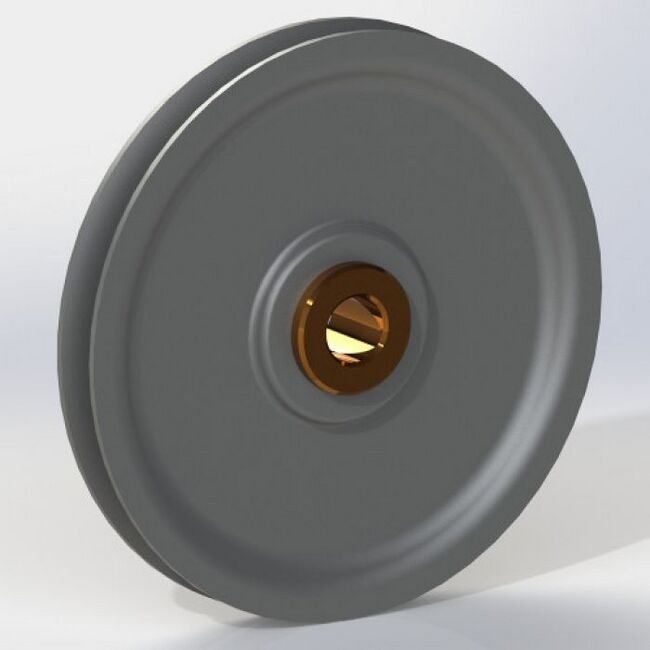

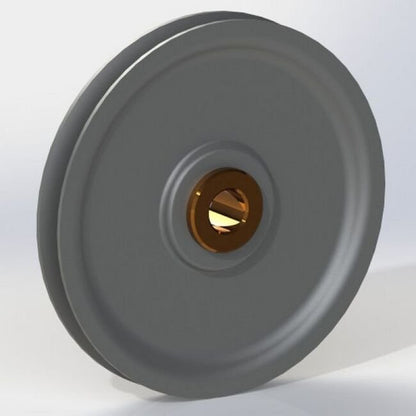

Sava LP Pulleys are molded from high quality strength nylon, impregnated with molybdenum disulfide ("MD") which acts as solid lubricant. Our customers value several properties - extreme tensile strength, impact resistance, breaking load, corrosion resistance and low friction, and the low thermal expansion coefficient. These light weight pulleys can support bearing loads greater than other thermoplastic materials. Excellent vibration and fatigue resistance, quiet and smooth operations and an up to 4.5 times longer working life compared to other pulleys are further advantages.

Product Specifications

Note

This product has a minimum quantity of 5.

Technical Specs Bore Condition

Bronze Bushing

Technical Specs Bore Diameter

0.394 in

Technical Specs Brands

Carl Stahl Sava Industries, Inc.

Technical Specs Cable Material

Molybdenum Disulfide Nylon

Technical Specs Cable Type

Standard

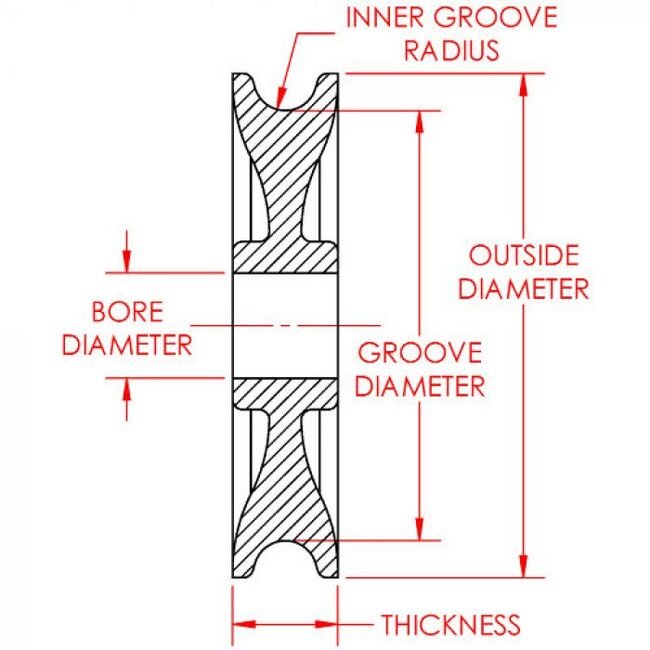

Technical Specs Inner Groove Radius

0.11 in

Technical Specs Load Rating

800

Technical Specs Maximum Mating Cable Diameter

0.188 in

Technical Specs Minimum Mating Cable Diameter

0.125 in

Technical Specs Outer Groove Diameter

3 in

Technical Specs Outside Diameter

3.5 in

Technical Specs Part

LP0300MB

Technical Specs Thickness

0.437 in
