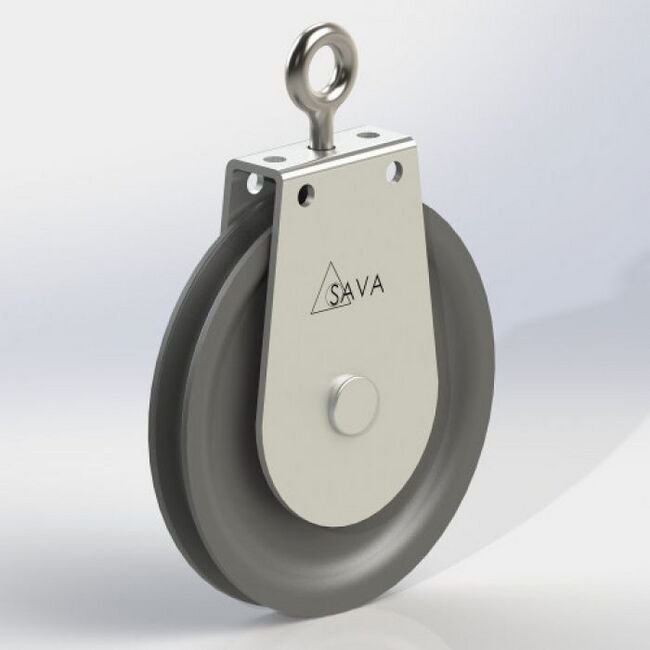

LP Series 0.438 Inch (in) Thickness Eye Mount Bracket Pulley

Name: LP Series 0.438 Inch (in) Thickness Eye Mount Bracket Pulley
Brand: Carl Stahl Sava Industries
SKU: LPS-a9a0c7
Price: 49.99 USD
Availability: OutOfStock

SKU:LPS-a9a0c7

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Our quality bracket systems are designed to support your processes. Available in different bracket and pulley sizes, they can be top, side or eye mounted. The maximum safe working load is determined by the end user. We generally advise a 3:1 safety factor at least (exclusive of any shock load). For large volumes, specially designed, customized brackets can be manufactured.

Product Specifications

Note

This product has a minimum quantity of 5.

Technical Specs Bore Condition

Plain Bore

Technical Specs Bracket Material

Plated Steel

Technical Specs Bracket Style

Eye Mount

Technical Specs Brands

Carl Stahl Sava Industries, Inc.

Technical Specs Cable Material

Molybdenum Disulfide Nylon

Technical Specs Cable Type

Bracket

Technical Specs Inner Groove Radius

0.11 in

Technical Specs Load Rating

800

Technical Specs Maximum Mating Cable Diameter

0.188 in

Technical Specs Minimum Mating Cable Diameter

0.125 in

Technical Specs Outside Diameter

2.5 in

Technical Specs Part

LP0200

Technical Specs Thickness

0.438 in

LP Series 0.438 Inch (in) Thickness Eye Mount Bracket Pulley
