LP Series Low Profile Platform Scale
LP Series Low Profile Platform Scale
SKU:FLO-332359
High-capacity, low profile platform scale for precise legal-for-trade applications. CoC 88-222 Class III certified.
Regular price
$5,999.99
Regular price
Sale price
$5,999.99
Unit price
per
Initiate Order
LP Series Low Profile Platform Scale
$5,999.99
Quantity: 1
Claim Your Seller Account
LP Series Low Profile Platform Scale
$5,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

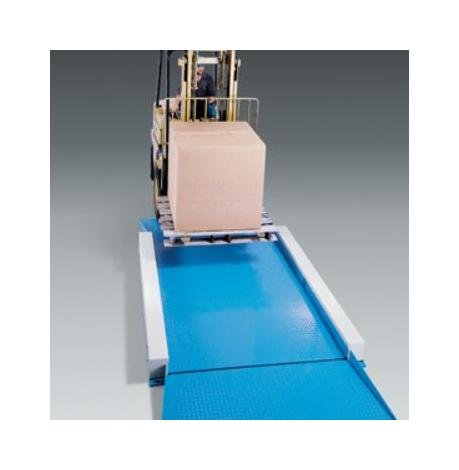

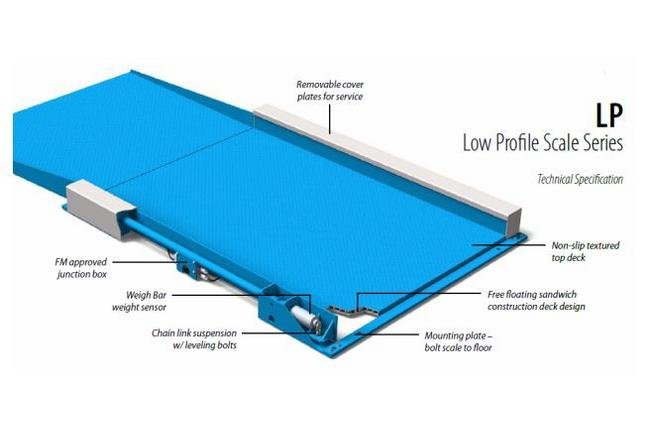

The LP Series Low Profile Platform Scale is specifically designed to meet a wide range of legal-for-trade floor scale capacities, making it ideal for both consumer and institutional use. With a capacity of 40,000 lb (20,000 kg) and a low profile of 3 inches (8 cm), this platform scale offers exceptional precision and durability. It comes with a range of options including different ramp sizes and additional interface cables, ensuring flexibility and customization for various applications. Compliant with CoC 88-222, Class III, 5,000 Divisions standards, this scale is a reliable choice for accurate weighing needs.
Product Specifications
Options Accessories
[15923-0325] - Platform lifting eye (must be requested at time of order) On all decks with a width dimension of less than 60", two (2) lifting eyes may be ordered at no additional charge. Decks with a width dimension of 60" or more may be ordered with four (4) lifting eyes at no additional charge. | Extra interface cable
Options Options
When remote mounting the junction box from scale, add for 25' weigh bar cables
Specifications Capacity
40,000 lb | 20,000 kg
Specifications Height
3 in | 8 cm
Specifications Length
108 in
Specifications Model Number
LP10884-40
Specifications Notes
Additional cost determined by shipping method, please call before ordering.5,000 lb decks may be legally installed as a 2,000 lb capacity scale with 0.5 lb increments.10,000 lb decks may be legally installed as a 5,000 lb capacity scale with 1 lb increments.20,000 lb decks may be legally installed as a 10,000 lb capacity scale with 2 lb increments.40,000 lb decks may be legally installed as a 20,000 lb capacity scale with 5 lb increments.When removing existing junction box from scale, add charge for extra cable length to each sensor | When ordering ramps match the ramp width to the scale width
Specifications Ramps
14198-0011, 84" Ramp | 19124-0019, 48" Ramp | 19124-0035, 60" Ramp | 19124-0050, 72" Ramp
Specifications Shipping Weight
3300 lb | 1497 kg
Specifications Width
84 in
