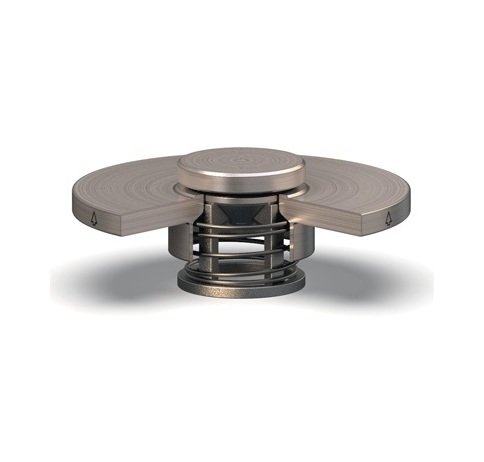

The LP Style 1 Inch Lined Pipe Insert Check Valve offers a simple and cost-effective solution for integrating a check valve into lined pipe systems without the need for gaskets. Available in fluoropolymer or Alloy C-276 options, it caters to various demanding applications with its Alloy C-276 spring material as standard. This versatile valve can also function as a low-pressure relief valve or vacuum breaker, accommodating different spring settings to suit specific requirements. Manufactured in the USA, this valve ensures reliability and performance in critical applications.
Product Specifications
Note
Made in USA.
Specifications Body Material
Alloy C-276 = HC | Polytetrafluoroethylene (PTFE) = TF
Specifications Certifications
European Conformity (CE) PED 2014/68/EU Complaint | International Organization for Standardization (ISO 9001) Certified
Specifications Nominal Pipe Size
1 in
Specifications Non Shock Pressure Rating At 100 Degree Fahrenhei
55 psig
Specifications Non Shock Pressure Rating For Alloy C 276 Hc Valv
American National Standards Institute (ANSI) Class 150 and 300
Specifications Note For Material
Listed above are the most common material selections. Please contact the factory for additional options.
Specifications Note For Standard Cracking Pressure
0.500 psi is the only standard cracking pressure for spring materials other than Stainless Steel.
Specifications Seat Material
"Metal-to-Metal" = MT | Aflas® = AS | Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Perfluoroelastomer = KZ | Polytetrafluoroethylene (PTFE) = TF (For Polytetrafluoroethylene (PTFE) Valves, "TF" O-Ring seats are not available, "MT" seats mean plastic to plastic. (No o-ring))
Specifications Size Code
H
Specifications Special Options
T = FEP Encapsulated Spring (Contact the factory for more options)
Specifications Spring Material
316 Stainless Steel = SS | Alloy 400 or Monel® = MO | Alloy C-276 = HC | Inconel® X750 or Alloy X750 = IX | Titanium = TI
Specifications Standard Cracking Pressure
0.500 psi
Specifications Valve Style
LP
