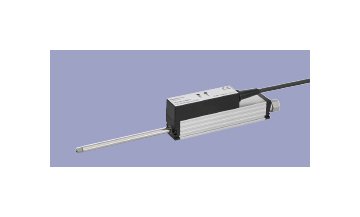

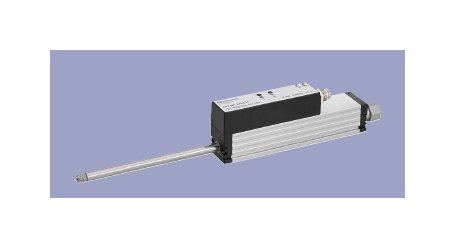

The LS1 Series Linear Position Sensor with Return Springs by Novotechnik is an ideal solution for precise position sensing in industrial applications. With stroke lengths ranging from 10 to 900 mm, this sensor offers exceptional durability and accuracy even in harsh environmental conditions. Featuring inductive sensor technology, customization options, and programmability, it ensures reliable performance with a long lifespan of up to 100 million movements. The sensor is compact, insensitive to magnetic fields, and offers outstanding linearity and resolution. With easy programming via pushbuttons and LEDs for feedback, the LS1 Series is designed to meet the demanding requirements of institutional buyers across a wide range of applications.
Product Specifications
Specifications Absolute Linearity Fs
< ± 0.15 %
Specifications Actuating Rod
AISI 303 | Internal thread M2.5x6 | Stainless Steel | With anti-rotation safeguard
Specifications Approximate Weight With Cable
150 g
Specifications Approximate Weight With Connector
107 g
Specifications Bearings
Both ends in metal-polymer glide bearings

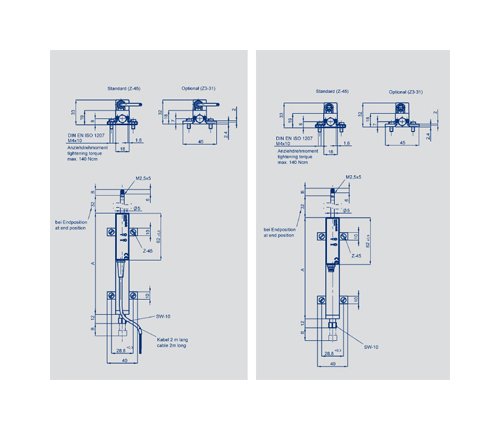

Specifications Body Length Dimension A
94.4 mm
Specifications Dc Output Current Signal
20 to 4 mA | 4 to 20 mA
Specifications Dc Overvoltage Protection Permanent
< 40 V
Specifications Dc Voltage
16 to 30 V
Specifications Electrical Connection
3-pin round connector | 3-wire PVC-cable | 3x 0,14 mm2 | Shielded 2 m length | Shielded | M8 x 1
Specifications Electrical Measuring Range
50 mm
Specifications Electronic
SMD with ASIC | Intergrated
Specifications Emission
RF noise field strength EN 55011, class B
Specifications Functional Safety
When using our products in safety-related systems, please contact us
Specifications Housing Material
Anodized Aluminum
Specifications Included In Delivery
1 probe tip with pressed-in hardened metal ball | 2 mounting clamps Z-45 incl. | 4 cylinder screws M4x10,
Specifications Insulation Resistance 500 Vdc
= 10 MO
Specifications Internal Resistance Of Voltage Output
120 O
Specifications Life
> 100 x 106 Movements
Specifications Maximum Operating Acceleration
5 g
Specifications Maximum Operating Force To End Stop
5 N
Specifications Maximum Operating Frequency
14 Hz
Specifications Maximum Operating Velocity
5 m/s
Specifications Maximum Permitted Tightening Torque For Mounting
140 N·cm
Specifications Maximum Supply Voltage Ripple Vss
10 %
Specifications Mean Time To Failure Mttf
24 Years
Specifications Measurement Principle
NOVOPAD Inductive
Specifications Mechanical Stroke Dimension B
55 mm
Specifications Mounting
Adjustable Clamps
Specifications Noise Immunity
Burst EN 61000-4-4 | Conducted disturbances induced by RF fields EN 61000-4-6 | ESD EN 61000-4-2 | Radiated immunity EN 61000-4-3
Specifications On Request Available
Customized length and electrical connection e.g. cable with connector.
Specifications Operating Force Horizontal
= 2.5
Specifications Operating Force Retracted Horizontal
= 5.0
Specifications Operating Humidity Range No Condensation
0 to 95 %
Specifications Operating Temperature Range With Cable
-30 to 100 ºC
Specifications Operating Temperature Range With Connector
-40 to 85 ºC
Specifications Optional Accessories

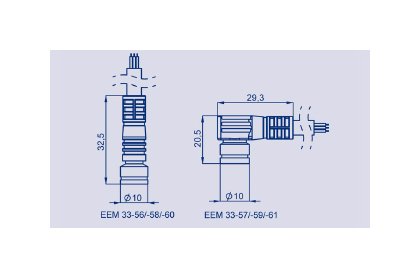

4 cylinder screws M4 x 10 | 4 mounting clamps Z3-31 incl. | P/N 059010 PUR-cable with 3-pin female connector, M8 x 1, 3 x 0.25 mm2, shielded: 2 m length, EEM 33-56, 5 m length, EEM 33-58, 10 m length, EEM 33-60 | PUR-cable with 3-pin female angled connector, M8 x 1,3 x 0.25 mm2, shielded: 2 m length, EEM 33-57, 5 m length, EEM 33-59, 10 m length, EEM 33-61.
Specifications Output Short Circuit Proof
Against supply max 30 VDC and GND (permanent)
Specifications Power Consumption Without Load
< 1 W
Specifications Probe Tip
Stainless steel with external thread M2.5 and pressed-in hardened metal ball
