LS1 Series Linear Rod Position Sensor - 100 mm Range
LS1 Series Linear Rod Position Sensor - 100 mm Range
SKU:LS1-818a2f
Discover the LS1 Series Linear Rod Position Sensor - Superior durability, accurate measurements, and customizable design for various applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
LS1 Series Linear Rod Position Sensor - 100 mm Range
$129.99
Quantity: 1
Claim Your Seller Account
LS1 Series Linear Rod Position Sensor - 100 mm Range
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

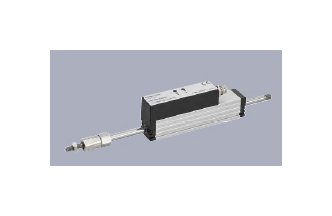

Enhance your position sensing with the LS1 Series Linear Rod Type Position Sensor offering exceptional durability, precise measurements, and customization options. With features like high tolerance to environmental conditions, inductive sensors, and customizable programming, this sensor ensures optimal performance in a variety of applications. The non-contacting design, anodized aluminum housing, and robust construction guarantee longevity and reliability. With compliance to stringent industry standards, this sensor is ideal for both consumer and institutional needs.
Product Specifications
Specifications Actuating Rod
AISI 303 | External thread M5x0.5 | Stainless Steel
Specifications Approximate Weight With Cable
190 g
Specifications Approximate Weight With Connector
150 g
Specifications Ball Coupling
Hardened ball with spring pressure on carbide plate
Specifications Bearings
Both ends in metal-polymer glide bearings
Specifications Body Length Dimension A
138 mm
Specifications Dc Output Current Signal
20 to 4 mA | 4 to 20 mA
Specifications Dc Overvoltage Protection Permanent
< 40 V
Specifications Dc Voltage
16 to 30 V
Specifications Electrical Connection
3-pin round connector | Shielded, M8 x 1 | 3-wire PVC-cable | 3x 0,14 mm2 | Shielded 2 m length
Specifications Electrical Measuring Range
100 mm
Specifications Electronic
SMD with ASIC, integrated
Specifications Emission
RF noise field strength EN 55011, class B
Specifications Functional Safety
When using our products in safety-related systems, please contact us
Specifications Housing Material
Anodized Aluminum
Specifications Included In Delivery
1 ball coupling. | 2 mounting clamps Z-45 incl. | 4 cylinder screws M4x10
Specifications Insulation Resistance 500 Vdc
= 10 MO
Specifications Internal Resistance Of Voltage Output
120 O
Specifications Life
> 100 x 106 Movements
Specifications Maximum Operating Acceleration
5 g
Specifications Maximum Operating Velocity
5 m/s
Specifications Maximum Permitted Tightening Torque For Mounting
140 N·cm
Specifications Maximum Supply Voltage Ripple Vss
10 %
Specifications Mean Time To Failure Mttf
24 Years
Specifications Measurement Principle
NOVOPAD Inductive
Specifications Mechanical Stroke Dimension B
105 mm
Specifications Mobility Of Ball Coupling
± 1 mm parallel offset | ± 2.5 º angular offset
Specifications Mounting
Adjustable Clamps
Specifications Noise Immunity
Burst EN 61000-4-4 | Conducted disturbances induced by RF fields EN 61000-4-6 | ESD EN 61000-4-2 | Radiated immunity EN 61000-4-3
Specifications On Request Available
Customized length and electrical connection e.g. cable with connector.
Specifications Operating Force Horizontal
= 0.3
Specifications Operating Humidity Range No Condensation
0 to 95 %
Specifications Operating Temperature Range With Cable
-30 to 100 ºC
Specifications Operating Temperature Range With Connector
-40 to 85 ºC
Specifications Optional Accessories

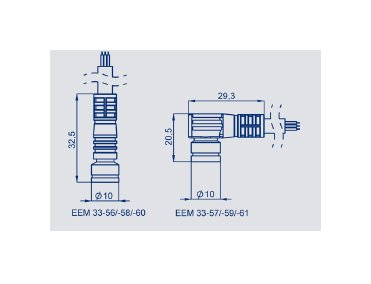

4 cylinder screws M4 x 10 | 4 mounting clamps Z3-31 incl. | P/N 059010 PUR-cable with 3-pin female connector, M8 x 1, 3 x 0.25 mm2, shielded: 2 m length, EEM 33-56, 5 m length, EEM 33-58, 10 m length, EEM 33-60 | PUR-cable with 3-pin female angled connector, M8 x 1,3 x 0.25 mm2, shielded: 2 m length, EEM 33-57, 5 m length, EEM 33-59, 10 m length, EEM 33-61.
Specifications Output Short Circuit Proof
Against supply max 30 VDC and GND (permanent)
Specifications Power Consumption Without Load
< 1 W
Specifications Protection Class
IP 40 DIN EN 60529
Specifications Repeatability Current High Speed Mode
< 16 µA, typical < 5 µA
Specifications Repeatability Current Low Speed Mode
< 8 µA, typical < 3 µA
