LS1 Series Linear Rod Position Sensor - Inductive, 25mm
LS1 Series Linear Rod Position Sensor - Inductive, 25mm
SKU:LS1-27c410
High-precision LS1 Series Linear Rod Position Sensor with 25mm measurement range, programmable features, and durable construction for diverse applications.
Regular price
$169.99
Regular price
Sale price
$169.99
Unit price
per
Initiate Order
LS1 Series Linear Rod Position Sensor - Inductive, 25mm
$169.99
Quantity: 1
Claim Your Seller Account
LS1 Series Linear Rod Position Sensor - Inductive, 25mm
$169.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

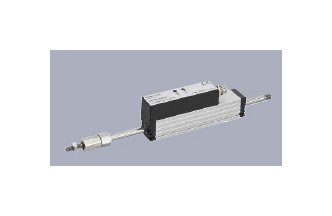

The LS1 Series Linear Rod Position Sensor offers high precision and durability with a measurement range of 25mm. Featuring non-contact inductive sensors, this sensor has a long lifespan of over 100 million movements, exceptional linearity, and resistance to environmental challenges. With programmable features, adjustable mounting clamps, and compatibility with various probe tips, it meets the diverse needs of position sensor applications. The anodized aluminum housing, AISI 303 actuating rod, and advanced electronic components ensure reliable performance in demanding environments.
Product Specifications
Specifications Absolute Linearity Fs
< ± 0.1 %
Specifications Actuating Rod
AISI 303 | External thread M5x0.5 | Stainless Steel
Specifications Approximate Weight With Cable
140 g
Specifications Approximate Weight With Connector
86 g
Specifications Ball Coupling
Hardened ball with spring pressure on carbide plate
Specifications Bearings
Both ends in metal-polymer glide bearings
Specifications Body Length Dimension A
63 mm
Specifications Dc Output Voltage Signal
0.1 to 10 V | 10 to 0.1 V
Specifications Dc Overvoltage Protection Permanent
< 40 V
Specifications Dc Voltage
16 to 30 V
Specifications Electrical Connection
3-pin round connector | Shielded, M8 x 1 | 3-wire PVC-cable | 3x 0,14 mm2 | Shielded 2 m length
Specifications Electrical Measuring Range
25 mm
Specifications Electronic
SMD with ASIC, integrated
Specifications Emission
RF noise field strength EN 55011, class B
Specifications Functional Safety
When using our products in safety-related systems, please contact us
Specifications Housing Material
Anodized Aluminum
Specifications Included In Delivery
1 ball coupling. | 2 mounting clamps Z-45 incl. | 4 cylinder screws M4x10
Specifications Insulation Resistance 500 Vdc
= 10 MO
Specifications Internal Resistance Of Voltage Output
120 O
Specifications Life
> 100 x 106 Movements
Specifications Maximum Operating Acceleration
5 g
Specifications Maximum Operating Velocity
5 m/s
Specifications Maximum Permitted Tightening Torque For Mounting
140 N·cm
Specifications Maximum Supply Voltage Ripple Vss
10 %
Specifications Mean Time To Failure Mttf
24 Years
Specifications Measurement Principle
NOVOPAD Inductive
Specifications Mechanical Stroke Dimension B
30 mm
Specifications Mobility Of Ball Coupling
± 1 mm parallel offset | ± 2.5 º angular offset
Specifications Mounting
Adjustable Clamps
Specifications Noise Immunity
Burst EN 61000-4-4 | Conducted disturbances induced by RF fields EN 61000-4-6 | ESD EN 61000-4-2 | Radiated immunity EN 61000-4-3
Specifications On Request Available
Customized length and electrical connection e.g. cable with connector.
Specifications Operating Force Horizontal
= 0.3
Specifications Operating Humidity Range No Condensation
0 to 95 %
Specifications Operating Temperature Range With Cable
-30 to 100 ºC
Specifications Operating Temperature Range With Connector
-40 to 85 ºC
Specifications Optional Accessories

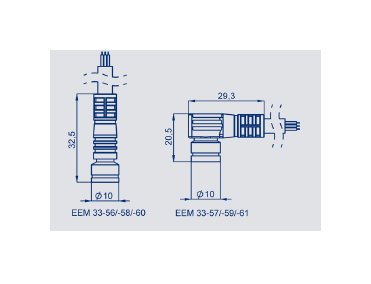

4 cylinder screws M4 x 10 | 4 mounting clamps Z3-31 incl. | P/N 059010 PUR-cable with 3-pin female connector, M8 x 1, 3 x 0.25 mm2, shielded: 2 m length, EEM 33-56, 5 m length, EEM 33-58, 10 m length, EEM 33-60 | PUR-cable with 3-pin female angled connector, M8 x 1,3 x 0.25 mm2, shielded: 2 m length, EEM 33-57, 5 m length, EEM 33-59, 10 m length, EEM 33-61.
Specifications Output Short Circuit Proof
Against supply max 30 VDC and GND (permanent)
Specifications Power Consumption Without Load
< 1 W
Specifications Repeatability Voltage High Speed Mode
< 10 mV,typical < 3 mV
Specifications Repeatability Voltage Low Speed Mode
< 5 mV,typical < 2 mV
