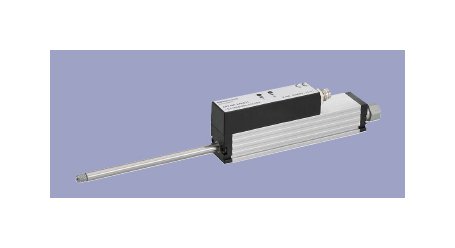

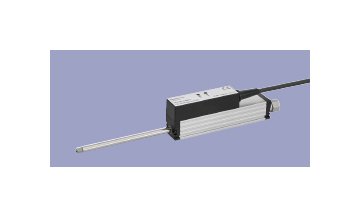

LS1 Series Linear Rod Position Sensor with Return Spring

Name: LS1 Series Linear Rod Position Sensor with Return Spring
Brand: Novotechnik U.S., Inc.
SKU: LS1-ac4851
Price: 239.99 USD
Availability: OutOfStock

SKU:LS1-ac4851

Advanced linear position sensor for precise measurement in industrial applications with exceptional durability and accuracy.

$239.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The LS1 Series Linear Rod Position Sensor with Return Spring is engineered by Novotechnik to ensure precise position sensing in diverse applications. With a robust anodized aluminum housing, stainless steel actuating rod, and advanced inductive measurement principle, this sensor offers exceptional accuracy and durability. It features customizable programming, high linearity, and resistance to environmental factors, making it ideal for industrial and institutional use.

Product Specifications

Specifications Absolute Linearity Fs

< ± 0.15 %

Specifications Actuating Rod

AISI 303 | Internal thread M2.5x6 | Stainless Steel | With anti-rotation safeguard

Specifications Approximate Weight With Cable

150 g

Specifications Approximate Weight With Connector

107 g

Specifications Bearings

Both ends in metal-polymer glide bearings

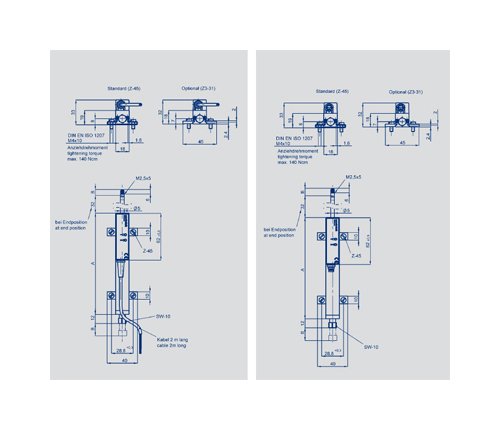

Specifications Body Length Dimension A

94.4 mm

Specifications Dc Output Voltage Signal

0.1 to 10 V | 10 to 0.1 V

Specifications Dc Overvoltage Protection Permanent

< 40 V

Specifications Dc Voltage

16 to 30 V

Specifications Electrical Connection

Specifications Electrical Measuring Range

50 mm

Specifications Electronic

SMD with ASIC | Intergrated

Specifications Emission

RF noise field strength EN 55011, class B

Specifications Functional Safety

When using our products in safety-related systems, please contact us

Specifications Housing Material

Anodized Aluminum

Specifications Included In Delivery

1 probe tip with pressed-in hardened metal ball | 2 mounting clamps Z-45 incl. | 4 cylinder screws M4x10,

Specifications Insulation Resistance 500 Vdc

= 10 MO

Specifications Internal Resistance Of Voltage Output

120 O

Specifications Life

> 100 x 106 Movements

Specifications Maximum Operating Acceleration

5 g

Specifications Maximum Operating Force To End Stop

5 N

Specifications Maximum Operating Frequency

14 Hz

Specifications Maximum Operating Velocity

5 m/s

Specifications Maximum Permitted Tightening Torque For Mounting

140 N·cm

Specifications Maximum Supply Voltage Ripple Vss

10 %

Specifications Mean Time To Failure Mttf

24 Years

Specifications Measurement Principle

NOVOPAD Inductive

Specifications Mechanical Stroke Dimension B

55 mm

Specifications Mounting

Adjustable Clamps

Specifications Noise Immunity

Burst EN 61000-4-4 | Conducted disturbances induced by RF fields EN 61000-4-6 | ESD EN 61000-4-2 | Radiated immunity EN 61000-4-3

Specifications On Request Available

Customized length and electrical connection e.g. cable with connector.

Specifications Operating Force Horizontal

= 2.5

Specifications Operating Force Retracted Horizontal

= 5.0

Specifications Operating Humidity Range No Condensation

0 to 95 %

Specifications Operating Temperature Range With Cable

-30 to 100 ºC

Specifications Operating Temperature Range With Connector

-40 to 85 ºC

Specifications Optional Accessories

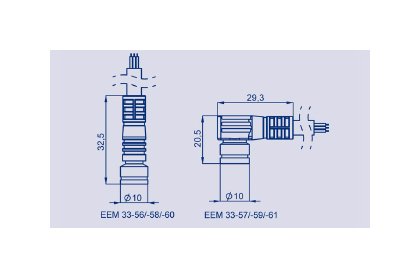

4 cylinder screws M4 x 10 | 4 mounting clamps Z3-31 incl. | P/N 059010 PUR-cable with 3-pin female connector, M8 x 1, 3 x 0.25 mm2, shielded: 2 m length, EEM 33-56, 5 m length, EEM 33-58, 10 m length, EEM 33-60 | PUR-cable with 3-pin female angled connector, M8 x 1,3 x 0.25 mm2, shielded: 2 m length, EEM 33-57, 5 m length, EEM 33-59, 10 m length, EEM 33-61.

Specifications Power Consumption Without Load

< 1 W

Specifications Repeatability Voltage High Speed Mode

< 10 mV,typical < 3 mV

Specifications Repeatability Voltage Low Speed Mode

< 5 mV,typical < 2 mV
