LS1 Series Linear Rod Type Position Sensor - 200mm
LS1 Series Linear Rod Type Position Sensor - 200mm
SKU:LS1-1d62bb

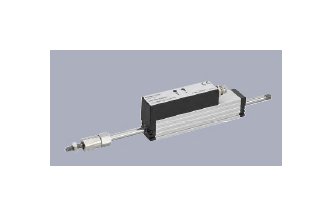

LS1 Series Linear Rod Type Position Sensor offers precise measurement with long life and customizable programming for diverse applications.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
LS1 Series Linear Rod Type Position Sensor - 200mm
$289.99
Quantity: 1
Claim Your Seller Account
LS1 Series Linear Rod Type Position Sensor - 200mm
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The LS1 Series Linear Rod Type Position Sensor offers precise measurement capabilities with a long life expectancy of up to 100 million movements. Featuring inductive sensors and customizable programming, this sensor ensures outstanding linearity of ±0.15% and a resolution of 0.05% or 0.1%. With a compact 18x18 mm profile and resistance to magnetic fields, this sensor is ideal for diverse positioning applications. Its durable anodized aluminum housing, AISI 303 actuating rod, and hardened ball coupling with spring pressure on a carbide plate provide reliability in challenging environments. The sensor's operational range from -40 to 85 ºC, high shock and vibration resistance, and compliance with various industry standards make it a top choice for institutional and government buyers.
Product Specifications
Specifications Actuating Rod
AISI 303 | External thread M5x0.5 | Stainless Steel
Specifications Approximate Weight With Cable
260 g
Specifications Approximate Weight With Connector
230 g
Specifications Ball Coupling
Hardened ball with spring pressure on carbide plate
Specifications Bearings
Both ends in metal-polymer glide bearings
Specifications Body Length Dimension A
238 mm
Specifications Dc Output Voltage Signal
0.1 to 10 V | 10 to 0.1 V
Specifications Dc Overvoltage Protection Permanent
< 40 V
Specifications Dc Voltage
16 to 30 V
Specifications Electrical Connection
3-pin round connector | Shielded, M8 x 1 | 3-wire PVC-cable | 3x 0,14 mm2 | Shielded 2 m length
Specifications Electrical Measuring Range
200 mm
Specifications Electronic
SMD with ASIC, integrated
Specifications Emission
RF noise field strength EN 55011, class B
Specifications Functional Safety
When using our products in safety-related systems, please contact us
Specifications Housing Material
Anodized Aluminum
Specifications Included In Delivery
1 ball coupling. | 2 mounting clamps Z-45 incl. | 4 cylinder screws M4x10
Specifications Insulation Resistance 500 Vdc
= 10 MO
Specifications Internal Resistance Of Voltage Output
120 O
Specifications Life
> 100 x 106 Movements
Specifications Maximum Operating Acceleration
5 g
Specifications Maximum Operating Velocity
5 m/s
Specifications Maximum Permitted Tightening Torque For Mounting
140 N·cm
Specifications Maximum Supply Voltage Ripple Vss
10 %
Specifications Mean Time To Failure Mttf
24 Years
Specifications Measurement Principle
NOVOPAD Inductive
Specifications Mechanical Stroke Dimension B
205 mm
Specifications Mobility Of Ball Coupling
± 1 mm parallel offset | ± 2.5 º angular offset
Specifications Mounting
Adjustable Clamps
Specifications Noise Immunity
Burst EN 61000-4-4 | Conducted disturbances induced by RF fields EN 61000-4-6 | ESD EN 61000-4-2 | Radiated immunity EN 61000-4-3
Specifications On Request Available
Customized length and electrical connection e.g. cable with connector.
Specifications Operating Force Horizontal
= 0.3
Specifications Operating Humidity Range No Condensation
0 to 95 %
Specifications Operating Temperature Range With Cable
-30 to 100 ºC
Specifications Operating Temperature Range With Connector
-40 to 85 ºC
Specifications Optional Accessories

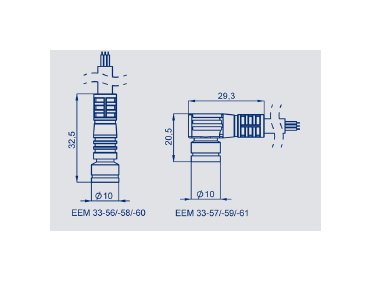

4 cylinder screws M4 x 10 | 4 mounting clamps Z3-31 incl. | P/N 059010 PUR-cable with 3-pin female connector, M8 x 1, 3 x 0.25 mm2, shielded: 2 m length, EEM 33-56, 5 m length, EEM 33-58, 10 m length, EEM 33-60 | PUR-cable with 3-pin female angled connector, M8 x 1,3 x 0.25 mm2, shielded: 2 m length, EEM 33-57, 5 m length, EEM 33-59, 10 m length, EEM 33-61.
Specifications Output Short Circuit Proof
Against supply max 30 VDC and GND (permanent)
Specifications Power Consumption Without Load
< 1 W
Specifications Protection Class
IP 40 DIN EN 60529
Specifications Repeatability Voltage High Speed Mode
< 10 mV,typical < 3 mV
Specifications Repeatability Voltage Low Speed Mode
< 5 mV,typical < 2 mV
